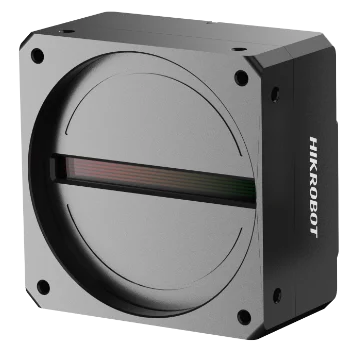

Hikrobot MV-CL084-B1NC 8K 7 μm color, 2.5G connector

Model MV-CL084-B1NCHikrobot

Resolution8192 ×3
SensorCMOS
Lens mountM72
Mono / colourColor
Pixel size7 μm × 7 μm

$2,679.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.59 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL084-B1NC 8K 7 μm color, 2.5G connector. 2.5GigE data interface: base line rate up to 37.6 kHz, instantaneous peak up to 42 kHz RGB true-color imaging for better color reproduction

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CL084-B1NC
Brand	Hikrobot
Image mode	Supports 1-Line
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS
Pixel size	7 μm × 7 μm
Resolution	8192 ×3
Max. line rate	Full resolution: 37.6 kHz @ Mono 8/Bayer RG 8, 12.5 kHz@RGB 8/BGR 8, 18.8 kHz@Mono10/ Mono12/Bayer RG 10/ Bayer RG 12; With ROI line-rate boost: up to 42 kHz (at 2448 resolution or below); Instantaneous peak: 42 kHz @ Mono 8/Bayer RG 8
Dynamic range	63.9 dB
SNR	41.6 dB
Gain	1.0 ×, 2.0 ×, 3.0 ×, 4.0 ×
Exposure time	3 μs ~ 10 ms
Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
Mono/color	Color
Pixel format	RGB8, BGR8; Bayer RG 8/10/12; Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Not supported

Interfaces and I/O

Data interface	2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10/11 32/64bits, Linux 32/64bits

Electrical

Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Power supply	12 ~24 VDC
Power consumption	8.6 W@24 VDC

Mechanical

Lens mount	M72*0.75, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter
Dimension	76 mm × 76 mm × 41.9 mm
Weight	Approx. 350 g
Shipping weight (estimated)	0.59 kg

Downloads

Features

2.5GigE data interface: base line rate up to 37.6 kHz, instantaneous peak up to 42 kHz
RGB true-color imaging for better color reproduction
Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment
Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
Compact design with mounting holes on multiple sides for flexible installation
Compatible with GigE Vision V2.0 and the GenICam standard
