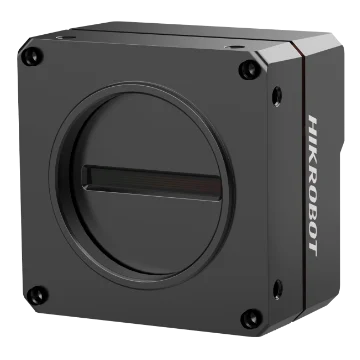

Hikrobot XAL024-4KGM 4096-pixel Gigabit Ethernet industrial line-scan camera
Model XAL024-4KGMHikrobot
- Resolution4096 × 3
- SensorCMOS
- Speed28 kHz @ Mono 8, 14 kHz @ Mono 10/12
- Lens mountM42
- Mono / colourMono
- Pixel size7 μm × 7 μm
$639.00
Ships in 2-3 weeks
0.49 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot XAL024-4KGM 4096-pixel Gigabit Ethernet industrial line-scan camera. Single-line and TDI imaging Rich ISP processing, including Gamma correction, flat-field correction, gain adjustment and more
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | XAL024-4KGM |
|---|---|
| Brand | Hikrobot |
| Image mode | Supports 1 Line / 2 TDI / 3 TDI |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS |
|---|---|
| Pixel size | 7 μm × 7 μm |
| Resolution | 4096 × 3 |
| Max. line rate | 28 kHz @ Mono 8, 14 kHz @ Mono 10/12 |
| Dynamic range | 66.2 dB |
| SNR | 39 dB |
| Gain | Supports 1.0 ×, 2.0 ×, 4.0 × |
| Exposure time | 1 μs~10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Trigger mode | External trigger, internal trigger |
|---|---|
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 3.9 W@12 VDC |
Mechanical
| Lens mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
|---|---|
| Dimension | 62 mm × 62 mm × 41 mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Shipping weight (estimated) | 0.49 kg |
