Line scan cameras

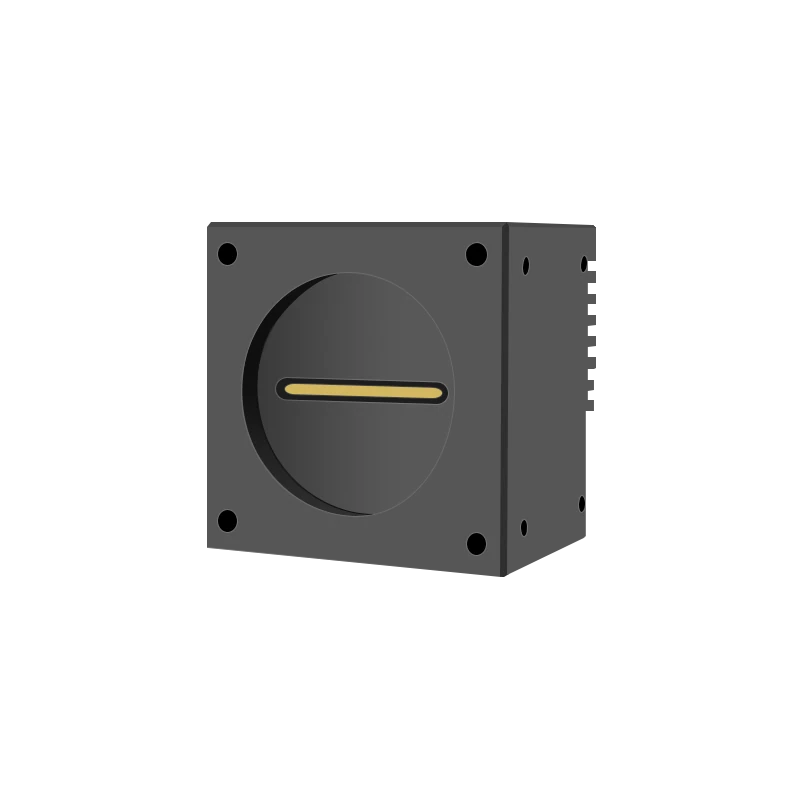

GigE line scan camera, 4K, GigE, Mono, effective pixel 4096×8, 12~24V (LS-LCM-0080)

Model LS-LCM-0080

Resolution4096×8
SensorCMOS
SpeedMono: 27.5K
Lens mountM42
Pixel size7μm

$1,099.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Industrial line scan cameras for large-format inspection and high-speed assembly line inspection, using domestic chips, GigE interface and 4K high resolution with up to 28KHz line frequency, integrating a variety of ISP image algorithms and supporting external trigger. LS-LCM-0076 are economical products with high performance and low cost.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LCM-0080
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Driver	Directshow component Halcon special component Labview special driver OCX component TWAIN component
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Vision standard	GigE Vision V1.2, GenICam
Filter	Mono cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut-off filter as standard
Line frequency	27.5k
TDI	4
Imaging mode	Supports multiple exposure and hardware SUM
Sensitivity	27.7 V/lux*s
Mirror image	Software image: left and right, up and down hardware image: up and down
Frame buffer	128MB
User EEPROM	2KB
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Transmission mode	GigE Vision V1.2, GenICam
Data format	Mono: Mono 8bit
TDI (detail)	4

Sensor and imaging

Resolution	4096×8
Sensor	4K
Shutter	Global
Pixel size	7μm
Minimal exposure	0.003ms
Dynamic range	74dB
SNR	39dB
Pixel output width	8bits
Maximum gain	8
Exposure time range	0.003~5ms
Binning	Horizontal: Bin2/4 Sum:2/4 Vertical: Bin2/4 Sum:2/4
Effective pixel	4096×8
Sensor type	CMOS
Shutter mode	Global
Minimum exposure	0.003ms
Sensor size	28.6mm (photosensitive region)
Exposure time range (ms)	0.003~5
Frame rate	Mono: 27.5K

Interfaces and I/O

Data interface	10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G (as printed in the GigE line scan general table)
Connector	GigE
Video output format & Maximum line frequency	Mono8 bit:27.5k
I/O	2 pairs of differential signal inputs, 1 optical coupling isolation signal input, 2 optical coupling isolation signal output
Video standard protocol	GigE Vision V1.2,GenICam
Transmission interface	Gigabit network

Light

Color	Mono
Color (detail)	Mono
Mono / colour	Mono

Environment and compliance

Working temperature @ humidity	0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60℃ @ 20%~95% (no condensation)
Operating temperature	0~50°
Operating humidity	20~80% (no condensation)
Storage temperature	-30~ 60°
Storage humidity	20~95% (no condensation)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Drive program	Directshow component Halcon special component Labview special drive OCX component TWAIN component

Electrical

Trigger mode	Continuous/software trigger/frame trigger/line trigger/conditional line trigger
Power supply	12~24V
Power	<6W
Voltage	12~24V

Mechanical

Target size	28.6mm
AD width	12bit
Lens mount	M42*1, optical rear focus 8 GigE port 12 mm

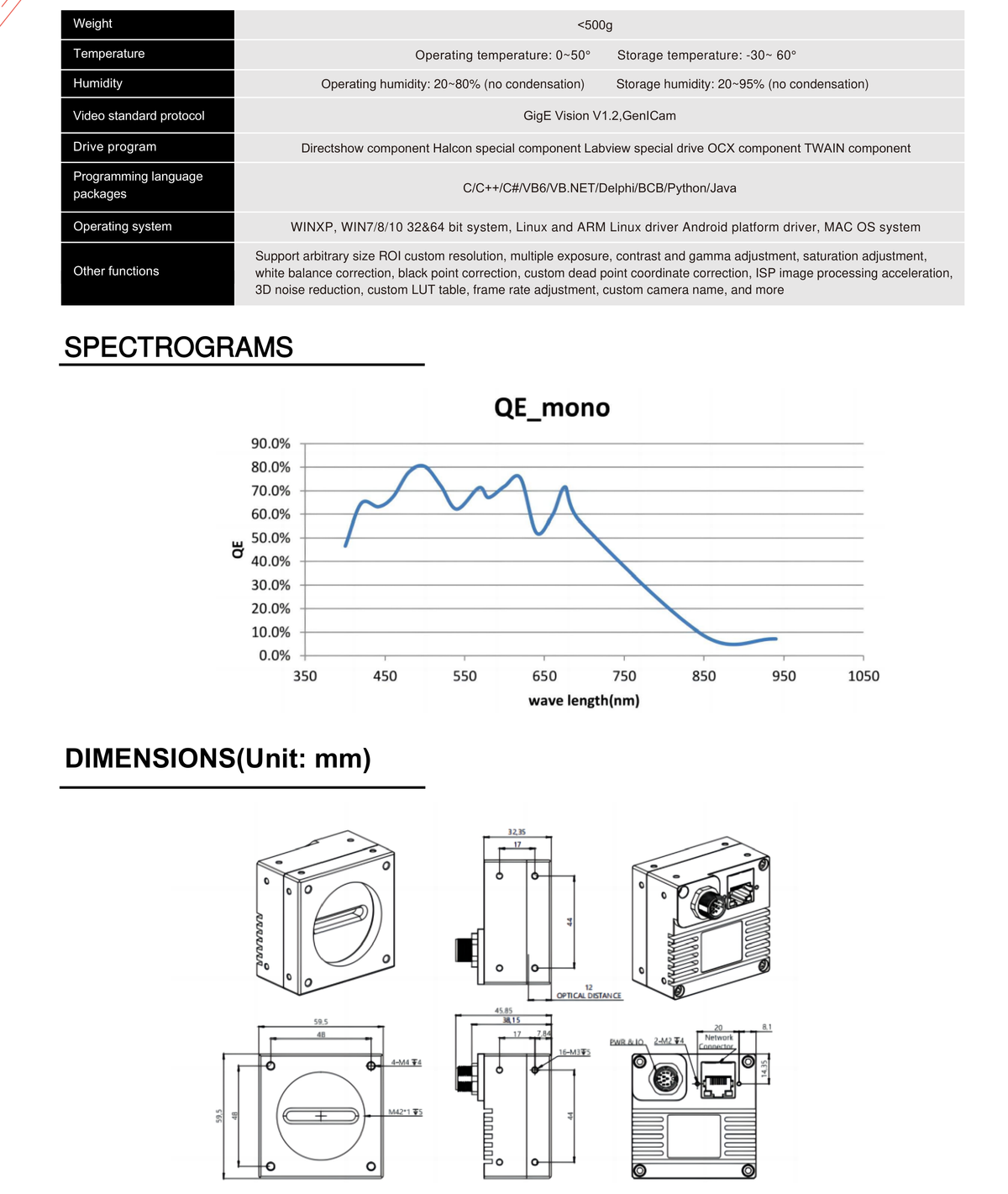

Dimension	59.5x59.5x43.34mm (excluding lens holder and rear shell interface)
Weight	<500g
Dimensions	59.5×59.5×32.35mm (without lens mount and rear shell interface)
Data bit width	8bits (camera output to the user data width)

Downloads

Datasheet (PDF)LS-LCM-0080 · 1.2 MB

Features

Line rate up to 48K, freely set in software; color line scan camera supports RGB three-line true color output
Supports sensor hardware 2-line SUM, multiplying brightness and reducing light source requirements
Multiple trigger modes such as encoder synchronous triggering and photoelectric sensor + encoder combined synchronous triggering
Supports frequency division and frequency doubling of the encoder signal to match the motion platform accurately
Hardware ISP supports gamma, contrast, lens shading correction and more
Gigabit Ethernet port, maximum transmission distance 100 meters
Software free configuration.
Hardware ISP supports Gamma,contrast,lens shadow correction and more.
Supports the frequency division and frequency doubling of the encoder signal.
Support hardware SUM mode,improve brightness,reduce the requirement of light.
Line frequency up to 27.5K.

Applications

Logistics
Metallurgy
Food
Pharmaceutical
Material sorting
