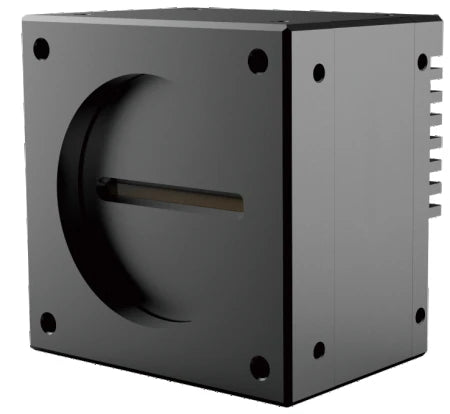

Representative photo of this series
Line scan cameras
GigE line scan camera, 8K, GigE, Mono (LS-LCM-0077)
Model LS-LCM-0077
- Resolution8192X4
- SensorCMOS
- Speed30K
- Lens mountM72
- Pixel size7μm
$1,129.00
Ships in 2-3 weeks
1.22 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial line scan cameras for large-format inspection and high-speed assembly line inspection, using domestic chips, GigE interface and 4K high resolution with up to 28KHz line frequency, integrating a variety of ISP image algorithms and supporting external trigger. LS-LCM-0076 are economical products with high performance and low cost.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0077 |
|---|---|
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Vision standard | GigE Vision V1.2, GenICam |
| Filter | Mono cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut-off filter as standard |
| Line frequency | 30k |
| TDI | 4 |
| Acquisition mode | Continuous/Software Trigger/Frame Trigger/Line Trigger/Conditional Line Trigger |
| Frame buffer | 512M Bytes |
| User-defined data area | 2K Bytes |
Sensor and imaging
| Effective pixel | 8192X4 |
|---|---|
| Sensor type | CMOS |
| Shutter mode | Global |
| Pixel size | 7μm |
| Minimum exposure | 0.004ms |
| Resolution | 8192X4 |
| Frame rate | 30K |
| Pixel bit depth | 10bit |
| Maximum gain (multiple) | 16 |
| Exposure time range (ms) | 0.004~50 |
| Sensor size | 57.344mm |
Interfaces and I/O
| Data interface | 10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G (as printed in the GigE line scan general table) |
|---|---|
| Video output format | Mono 8bit |
Light
| Color | Mono |
|---|---|
| Mono / colour | Mono |
Environment and compliance
| Working temperature @ humidity | 0~50℃ @ 20%~80% (no condensation) |
|---|---|
| Storage temperature @ humidity | -30~60℃ @ 20%~95% (no condensation) |
Computing
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
|---|
Electrical
| Power supply | 12~24V |
|---|---|
| Power | <6W |
| Voltage | 12~24V |
Mechanical
| Target size | 57.344mm |
|---|---|
| Lens mount | M72, optical back focus 12 mm |

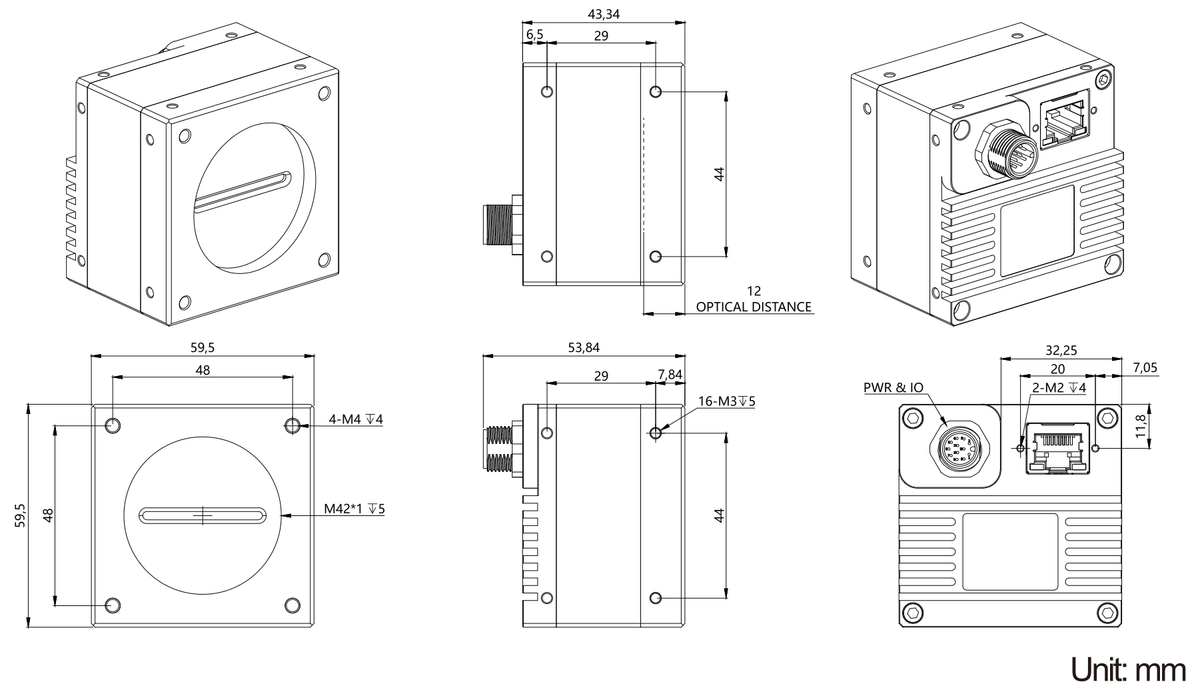

| Dimensions | 80x80x52.9mm (without lens mount and rear shell interface) |
| Weight | <800g |
