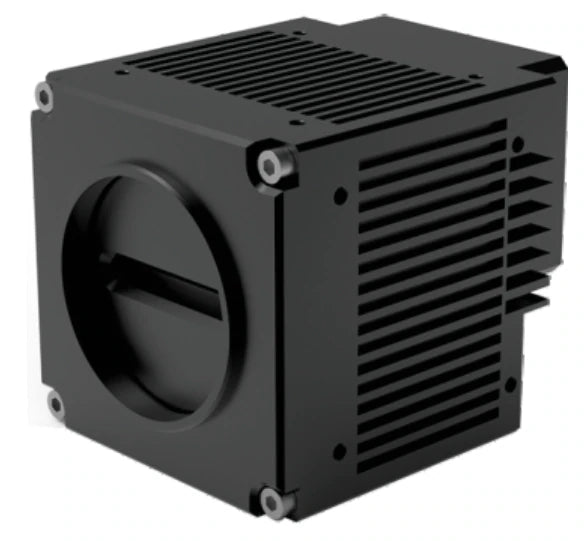

Representative photo of this series
Line scan cameras
10 GigE line scan camera, 256 LS-LCM-S17 series, 4K, 10GigE, Mono (LS-LCM-0111)
Model LS-LCM-0111
- Resolution4096×256
- SensorCMOS-TDI
- Lens mountM42
- Pixel size5μm×5μm
$1,439.00
Ships in 2-3 weeks
0.87 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
256-stage TDI 10 GigE line scan cameras using domestic linear array chips, in three specifications (LS-LCM-0111 / LS-LCM-0112 / LS-LCM-0113) with 4096/8192/16384 line pixels and line frequency up to 250K/144K/72K, for high speed and stability.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0111 |
|---|---|
| Data format | Mono |
| TDI | 256TDI |
| Sensitivity | Low sensitivity mode: 80 DN/nJ/cm2 @530nm; high sensitivity mode: 340 DN/nJ/cm2 @530nm |
| Transmission mode | GigE Vision V1.2, GenICam |
| Line frequency | 250/200KHZ |
| Camera line frequency | 250k (8bit) / 200k (12bit) |
Sensor and imaging
| Sensor line frequency | 250k/200k (sensor output pixel width 10bit) |
|---|---|
| Pixel size | 5μm×5μm |
| Dynamic range | low sensitivity mode: 65dB; high sensitivity mode: 67dB |
| Resolution | 4096×256 |
| Sensor type | CMOS-TDI |
| Shutter method | Global |
| Minimal exposure | 0.004ms |
| Sensor size | 21.177mm (photosensitive area) |
Interfaces and I/O
| Transmission interface | 10 gigabit network port (10 gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5/5G) |
|---|---|
| Lens interface | M42, flange distance 12mm |
Light
| Color specification | Mono |
|---|---|
| Colour | Mono |
| Mono / colour | Mono |
Environment and compliance
| Working temperature | 0-50℃ |
|---|---|
| Working humidity | 20-80% (without condensation) |
| Storage temperature | -30-60℃ |
| Storage humidity | 20-95% (without condensation) |
Electrical
| Power supply | 12V±10% |
|---|---|
| Power | <12W |
| Voltage | 12V±10% |
Mechanical
| AD width | 12bit (refers to the width supported by sensor) |
|---|---|
| Data bit width | 8/12bits (camera output data width to user) |
| Target size | 21.177mm |

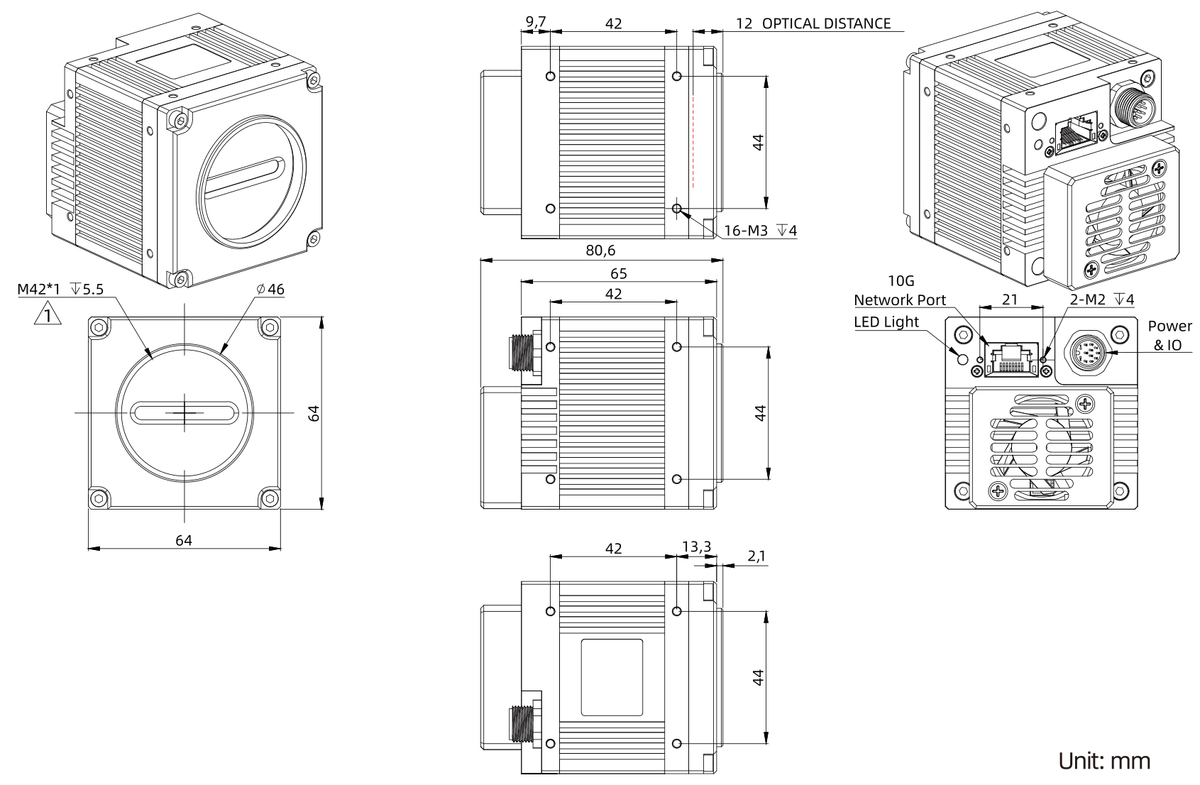

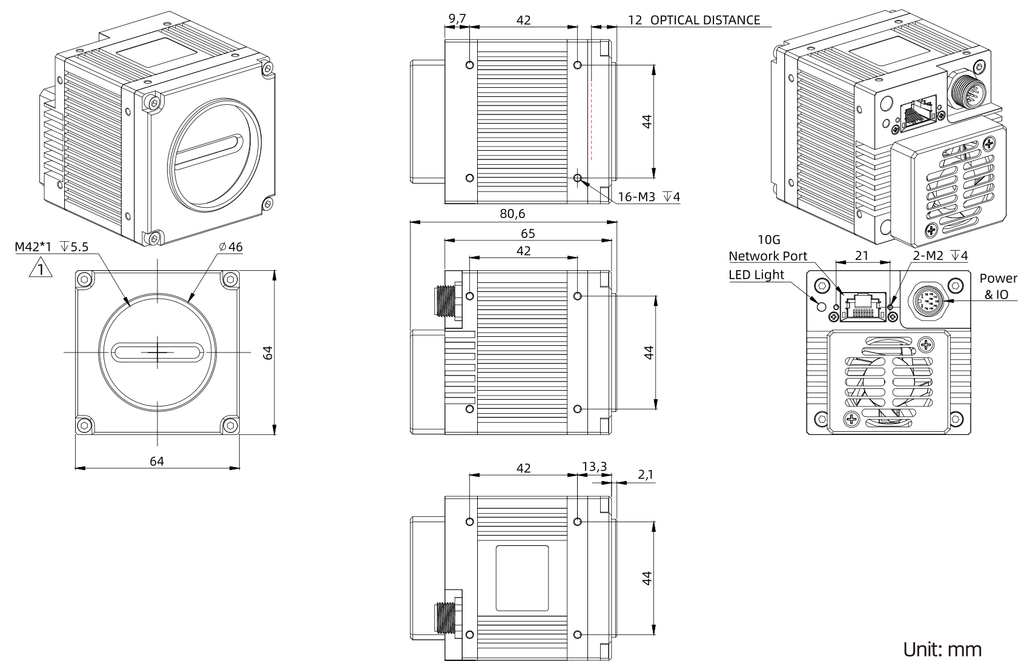

| Exterior dimensions | 64×64×65mm (excluding lens holder and rear shell interface) |
| Weight | <550g |
| Mount | M42 |
Other models in the 10 GigE line scan camera, 256 MT (LS-LCM-S17) series series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LCM-0112 | 8K, 10GigE, Mono | $1,439.00 | Ships in 2-3 weeks | View |
| LS-LCM-0113 | 16K, 10GigE, Mono | $1,439.00 | Ships in 2-3 weeks | View |
