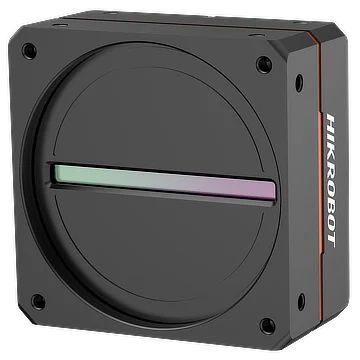

Hikrobot MV-CL081-41CM 8k Camera Link Line Scan Cameras, Mono
  • Hikrobot MV-CL081-41CM 8k Camera Link Line Scan Cameras, Mono
  • MV-CL081-41CM dimensions (mm)

Line scan cameras

Hikrobot MV-CL081-41CM 8k Camera Link Line Scan Cameras, Mono

Model MV-CL081-41CMHikrobot

  • Resolution8192 × 1
  • SensorCMOS
  • Lens mountM72
  • Mono / colourMono
  • Pixel size7 μm
$2,679.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.55 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Hikrobot MV-CL081-41CM 8k Camera Link Line Scan Cameras, Mono. Integrates multiple ISP technologies, and supports manual adjustment of Gamma correction, FFC correction, LUT, black level, etc. Supports multiple exposure and acquisition modes.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-CL081-41CM
BrandHikrobot
Image mode1-line
Configuration modeBase, Medium, Full
Tap geometry1 × 2, 1 × 4, 1 × 8
Tap number2 Taps, 4 Taps, 8 Taps
CompatibilityCamera Link V1.2, GenICam

Sensor and imaging

Sensor typeCMOS
Pixel size7 μm
Resolution8192 × 1
Max. line rate20 kHz (Base), 40 kHz (Medium), 80 kHz (Full)
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range64.7 dB
SNR44.3 dB
GainSupports 1 ×, 2 ×, 4 ×, 8 ×
Exposure time2 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Mono/colorMono

Interfaces and I/O

Data interfaceCamera Link (SDR connector); USB interface for updating firmware
Digital I/O12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Client softwareMVS and frame grabber software meeting with Camera Link Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Power supply12 VDC to 24 VDC
Power consumptionTyp. 5.8 W @ 12 VDC

Mechanical

Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
WeightApprox. 320 g (0.7 lb.)
Shipping weight (estimated)0.55 kg
