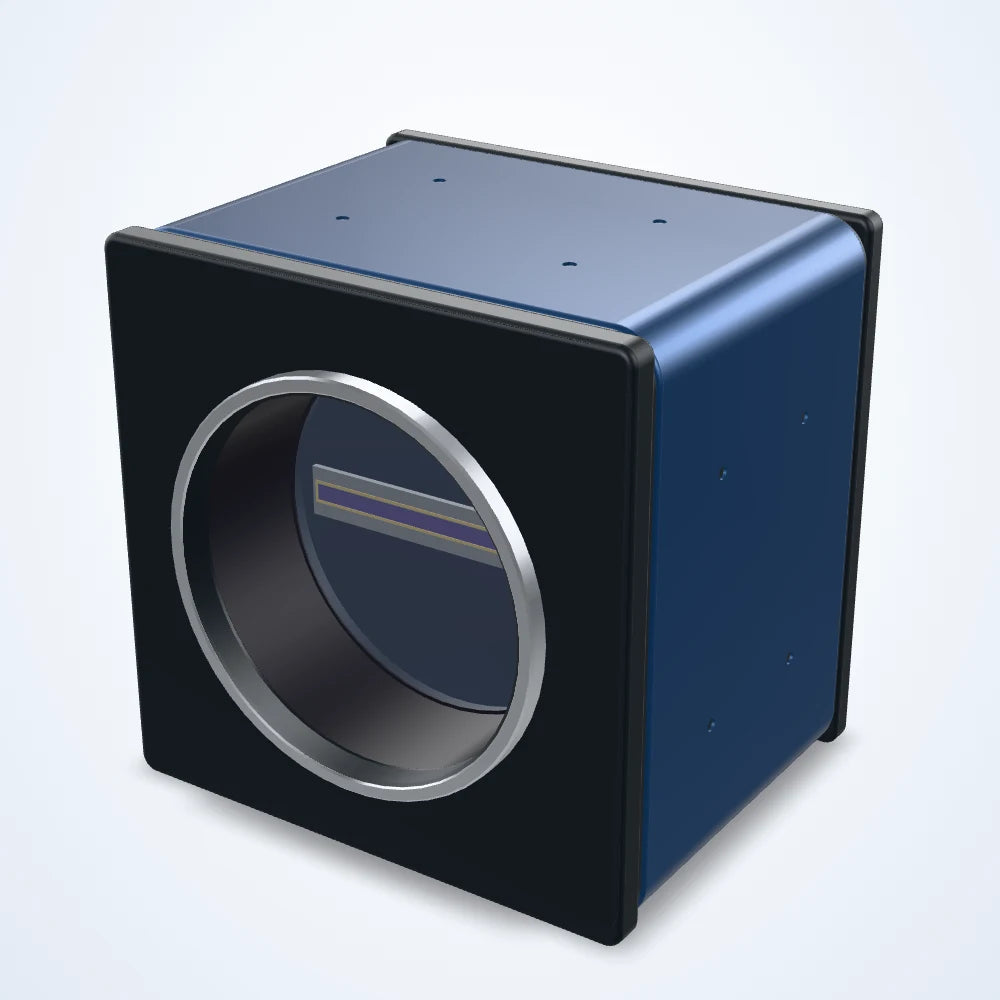

Camera Link line scan camera (series view)

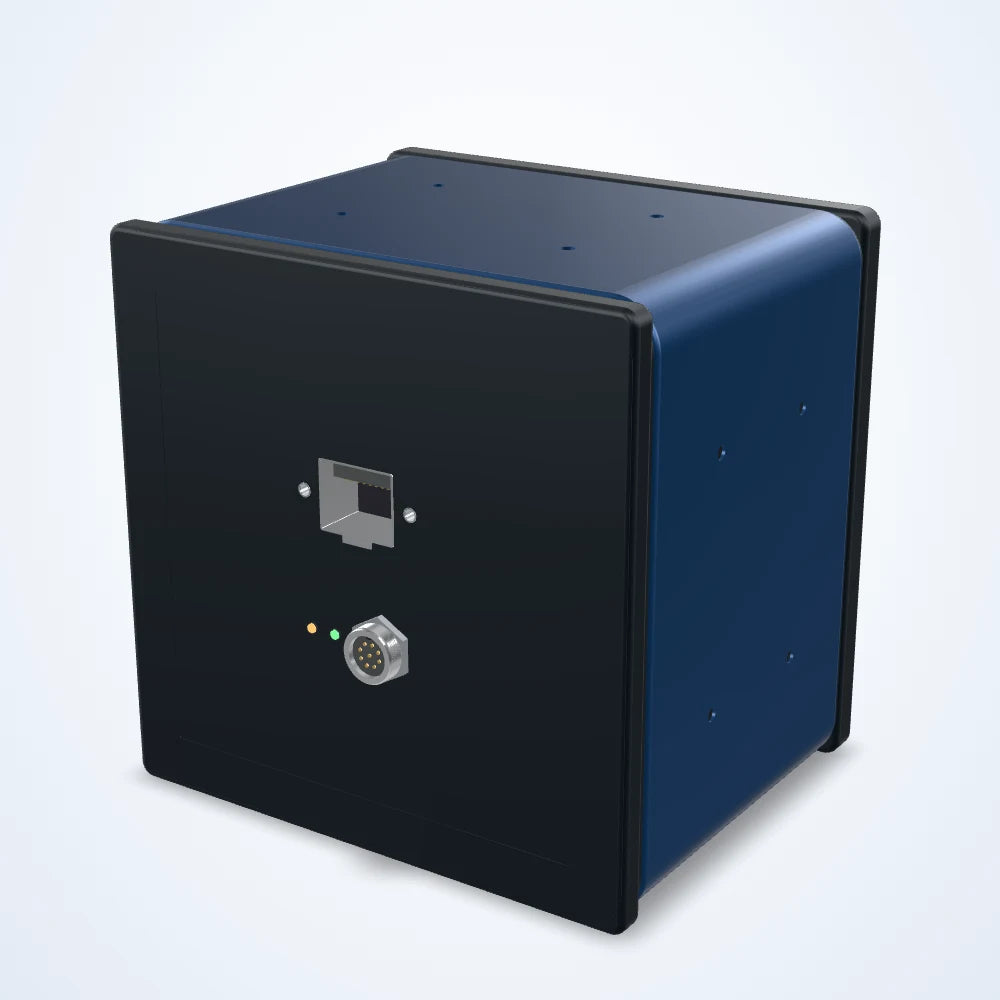

  • Camera Link line scan camera (series view)
  • Camera Link line scan camera (series view)
  • 8K Camera Link line scan camera, 7 μm, 74 kHz, M72

Rendered illustration: the actual product may differ in appearance.

Line scan cameras

8K Camera Link line scan camera, 7 μm, 74 kHz, M72 (LS-LCM-0025)

Model LS-LCM-0025

  • Resolution8192 x 1
  • SensorCMOS
  • InterfaceCameralink
  • Speed13/34/74/100
  • Lens mountM72
  • Pixel size7 × 7
$1,765.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8K Camera Link line scan camera, 7 μm, 74 kHz, M72 (LS-LCM-0025)LS-LCM-0025

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan camera for continuous web, roll and conveyor inspection. 8192 x 1 pixels of 7 μm; line rate up to 74 kHz; Camera Link interface; M72 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LCM-0025

Sensor and imaging

Resolution8192 x 1
Pixel size7 × 7
Max. line rate13/34/74/100
Pixel bit depth10/12 bit
Sensor makeCMOSIS
Sensor typeCMOS
Pixel formatMono8/10/10Packed/12/12Packed
Pixel Clock Speed32M/48M/68M/85 MHz
Dynamic range66.0 dB
Exposure time8 μs~100 ms

Interfaces and I/O

Data interfaceCameralink
Digital I/ODifferential/single-ended inputs x 2; Differential/single-ended outputs x 2; Differential/single-ended configurable input and output x 1; GPIO x 1

Environment and compliance

Operating temperature-30- 50°C(Operating), -30- 80°C(Storage)
CertificationCameraLink / GenICam

Computing

Operating systemWindows

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyDC12 V~24 V
Power consumption12 V @ ≈6 W

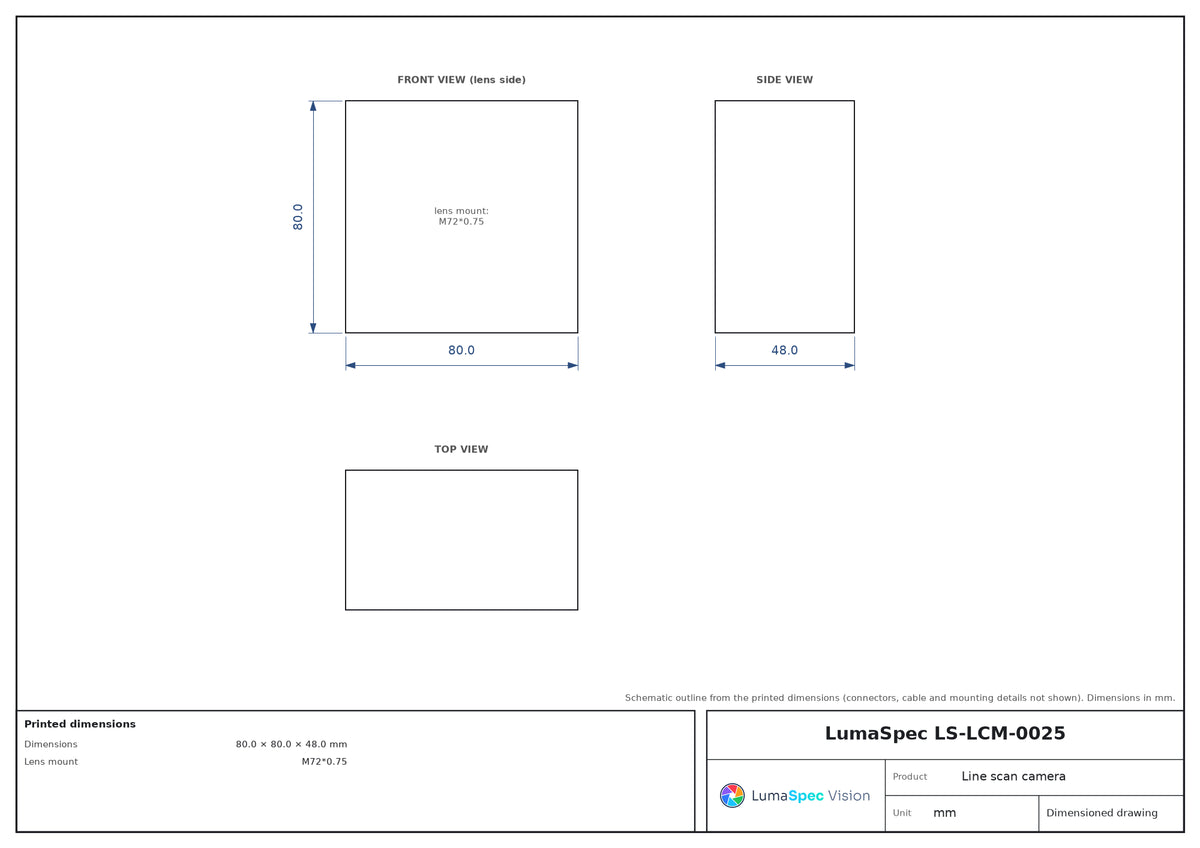

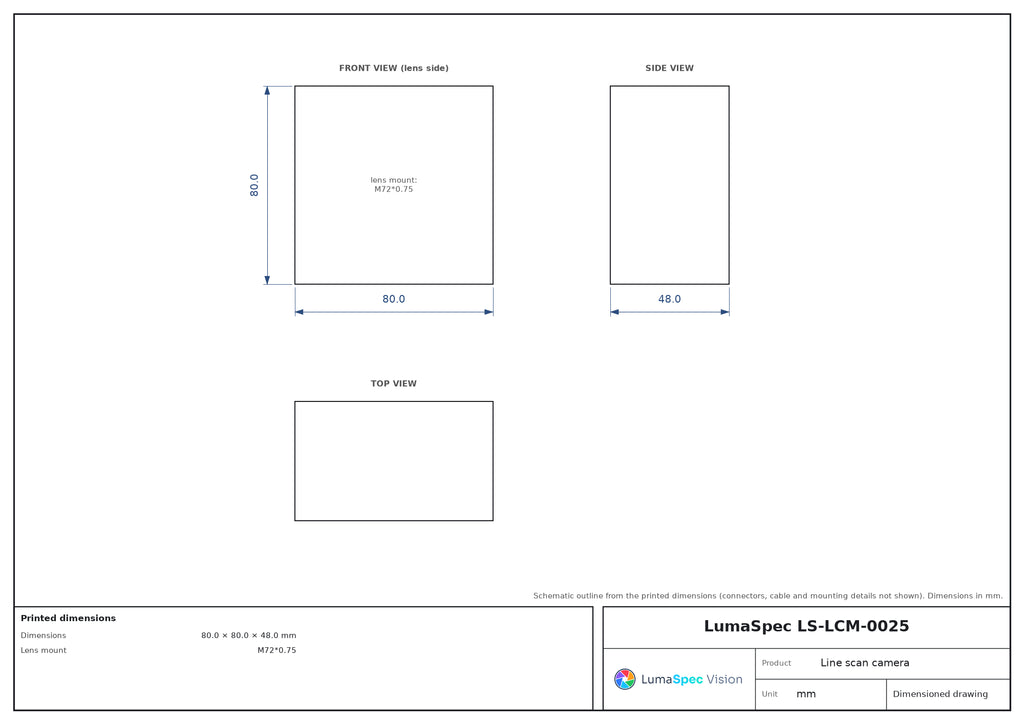

Mechanical

Lens mountM72*0.75
Dimensions80.0 × 80.0 × 48.0 mm
Weight390g
Mounting holes4-M4; 8-M4
