Line scan lens (series view)
  • Line scan lens (series view)
  • Line scan lens (series view)

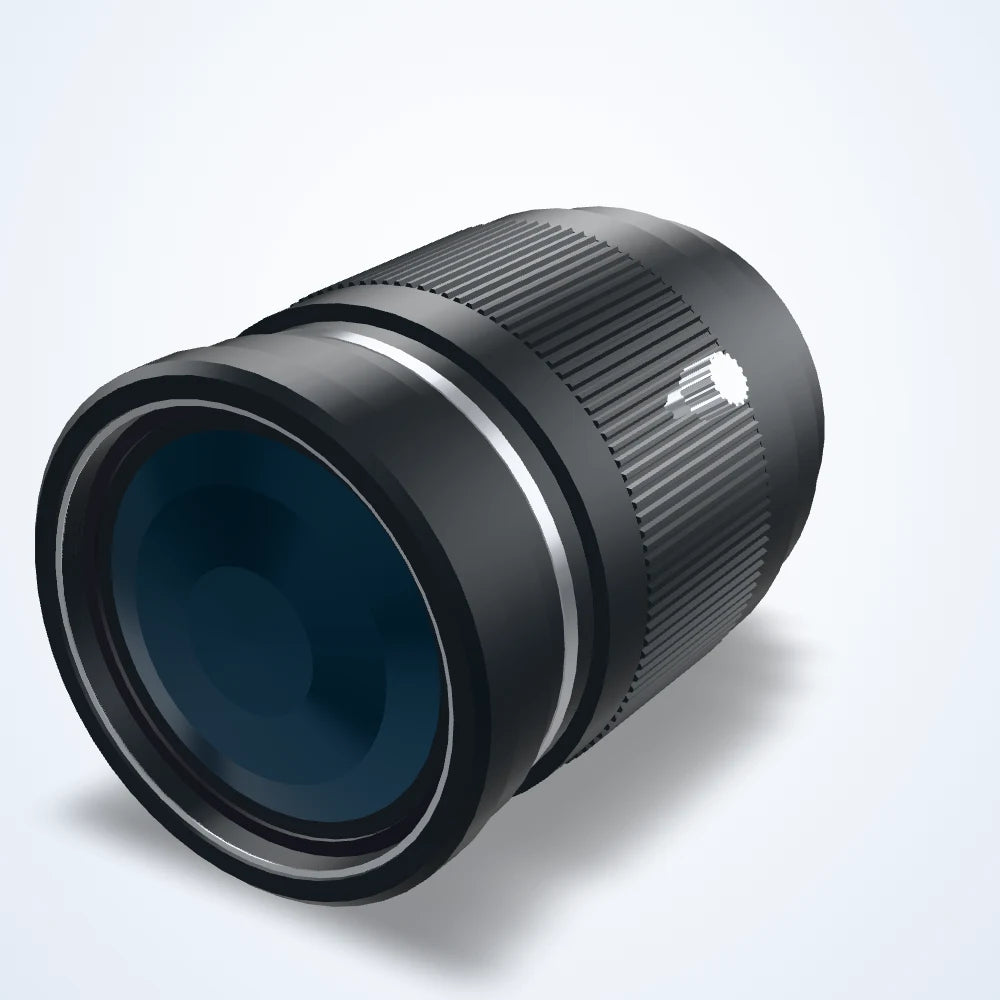

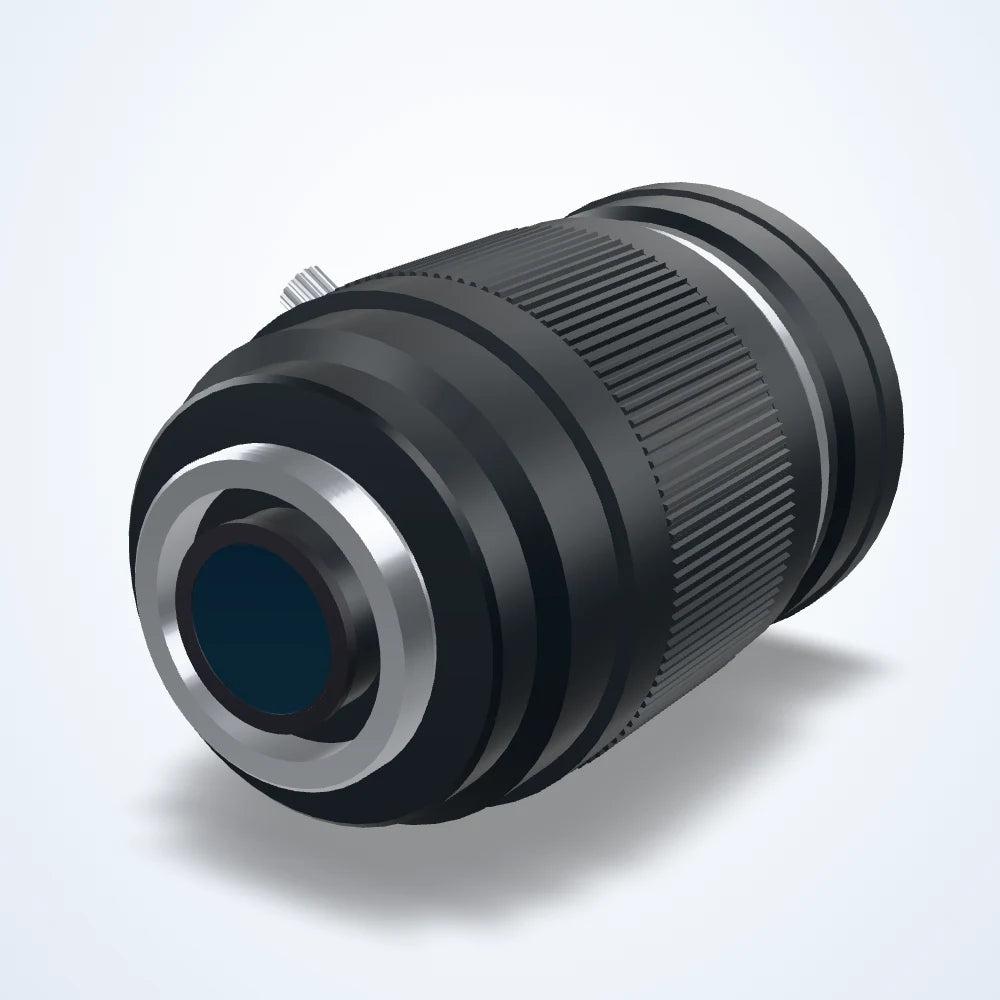

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

16K line scan lens, 120 mm, 0.5x, F4.0, BFL 192.71 mm (LS-LSL-0125)

Model LS-LSL-0125

  • Focal length120 mm
  • Magnification0.5x
  • MountV-mount
  • SensorLarge format
  • Working distance390.66 mm
  • ApertureF4.0
$1,400.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16K line scan lens, 120 mm, 0.5x, F4.0, BFL 192.71 mm (LS-LSL-0125)LS-LSL-0125

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16K line scan lens, 120 mm for line-scan cameras on webs and conveyors. Focal length 120 mm; magnification 0.5x; working distance 390.7 mm; aperture F4.0.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0125
Conjugate distance636.99 mm

Optics

Focal length120 mm
Magnification0.5x
Working distance390.66
ApertureF4.0
Distortion390.66 mm
FocusManual

Sensor and imaging

Resolution16k5μ
Sensor format82 mm

Light

Wavelength range400-950 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

Flange back length192.71 mm
MountV-mount
Shipping weight1.00 kg
