Line scan lens (series view)
  • Line scan lens (series view)
  • Line scan lens (series view)

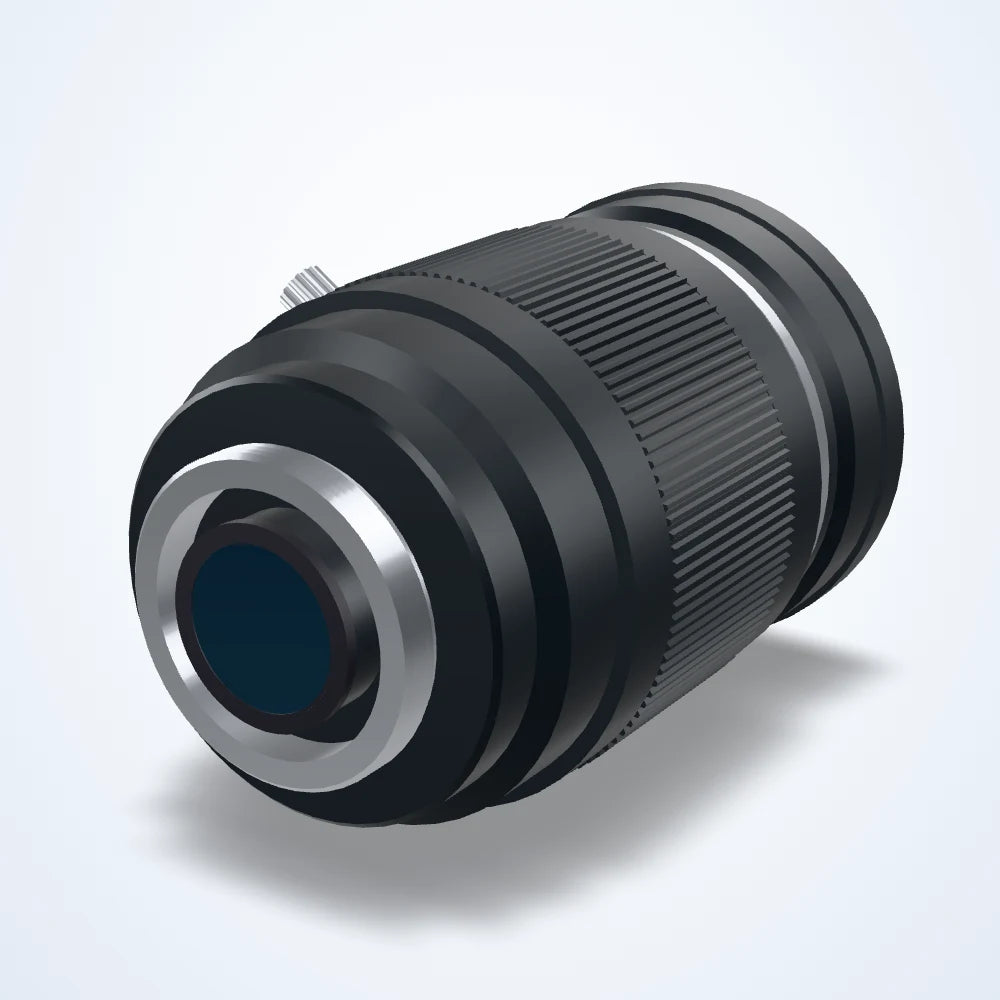

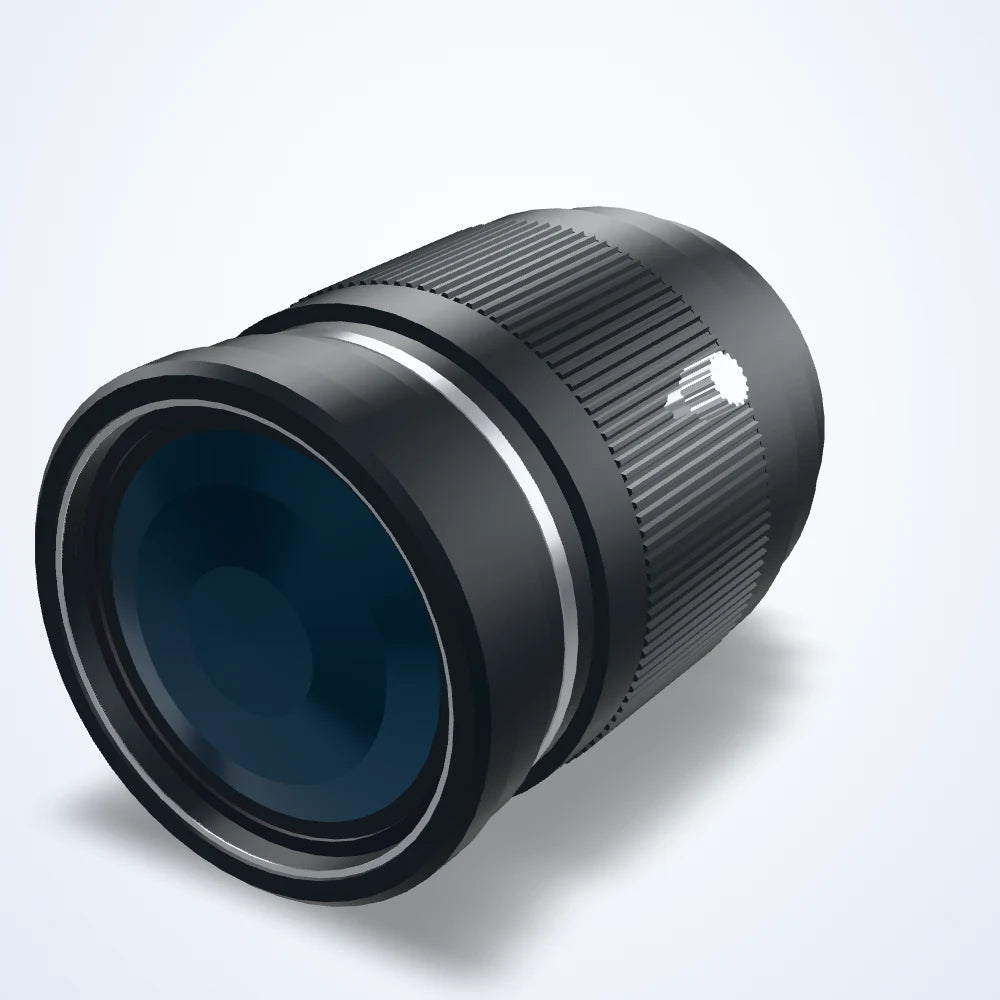

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

line scan lens, 116 mm, 1.7x, F4.0, BFL 381.66 mm (LS-LSL-0121)

Model LS-LSL-0121

  • Focal length116 mm
  • Magnification1.7x
  • MountV-mount
  • SensorLarge format
  • Working distance48.83 mm
  • ApertureF4.0
$1,600.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

line scan lens, 116 mm, 1.7x, F4.0, BFL 381.66 mm (LS-LSL-0121)LS-LSL-0121

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan lens, 116 mm for line-scan cameras on webs and conveyors. Focal length 116 mm; magnification 1.7x; working distance 48.8 mm; aperture F4.0.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0121
Conjugate distance470 mm

Optics

Focal length116 mm
Magnification1.7x
Working distance48.83 mm
ApertureF4.0
Distortion137.84 mm
FocusManual

Sensor and imaging

Resolution16k5μ
Sensor format82 mm

Light

Wavelength range400-950 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

Flange back length381.66 mm
MountV-mount
Shipping weight1.00 kg
