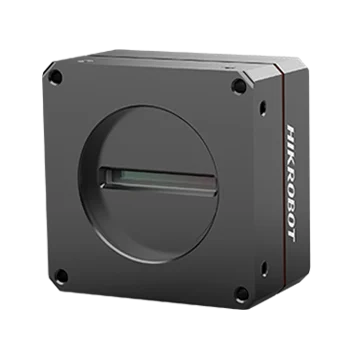

Hikrobot MV-CL042-91CM 4k Camera Link Line Scan Cameras, Mono
  • Hikrobot MV-CL042-91CM 4k Camera Link Line Scan Cameras, Mono
  • MV-CL042-91CM dimensions (mm)

Line scan cameras

Hikrobot MV-CL042-91CM 4k Camera Link Line Scan Cameras, Mono

Model MV-CL042-91CMHikrobot

  • Resolution4096 × 2
  • SensorCMOS
  • Lens mountM42
  • Mono / colourMono
  • Pixel size7 μm
$1,919.00

Ships in 2-3 weeks

0.43 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL042-91CM 4k Camera Link Line Scan Cameras, Mono. Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz. Applies multiple ISP technologies and supports manual adjustment for Gamma correction, PRNUC correction, LUT, black level, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-CL042-91CM
BrandHikrobot
Image modeSupports 1-line and 2-TDI
Configuration modeBase, Medium, Full
Tap geometry1X2, 1X4, 1X8
Tap number2 Taps, 4 Taps, 8 Taps
CompatibilityCamera Link V2.1, GenICam

Sensor and imaging

Sensor typeCMOS
Pixel size7 μm
Resolution4096 × 2
Max. line rate40.5 kHz (Base), 81 kHz (Medium), 100 kHz (Full)
Pixel clock40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range65.6 dB
SNR40 dB
GainSupports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time5 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Mono/colorMono

Interfaces and I/O

Data interfaceCamera Link (SDR connector); USB interface for updating firmware
Digital I/O12-pin Hirose connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Client softwareMVS and frame grabber software meeting with Camera Link Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Power supply12 VDC to 24 VDC
Power consumptionTyp. 5.5 W @ 12 VDC

Mechanical

Lens mountM42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter
Dimension62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5")
WeightApprox. 238 g (0.5 lb.)
Shipping weight (estimated)0.43 kg
