Line scan cameras

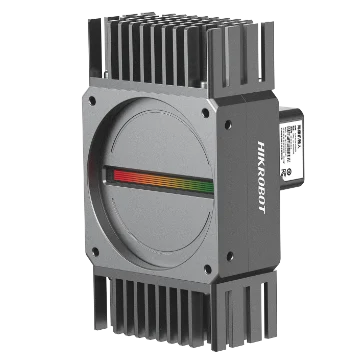

Hikrobot MV-CL083-B0F2C K7 XoF(2 SPF+) linescan camera, color
Model MV-CL083-B0F2CHikrobot
- Resolution8192 × 3
- SensorCMOS
- Interface2LC fiber interface
- Speed71 kHz
- Lens mountM72
- Mono / colourColor
$1,919.00
Ships in 2-3 weeks
0.94 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CL083-B0F2C K7 XoF(2 SPF+) linescan camera, color. Adopts multiple ISP image processing technologies, such as Gamma correction, flat field correction, LUT, black level, etc. Supports RGB true color and multiple exposure and acquisition modes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CL083-B0F2C |
|---|---|
| Brand | Hikrobot |
| Image mode | 1-Line |
| Compatibility | XoFLink, GenlCam |
| Transmission mode | 1 Link, 2 Link |
Sensor and imaging
| Sensor type | CMOS |
|---|---|
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 × 3 |
| Max. line rate | 71 kHz |
| SNR | 40.1 dB |
| Dynamic range | 61.2 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports fixed exposure time and trigger-width exposure time |
| Mono/color | Color |
| Pixel format | RGB 8, BGR 8, Mono 8, Bayer RG 8/10 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
Interfaces and I/O
| Data interface | 2LC fiber interface |
|---|---|
| Digital I/O | Not supported |
| Client software | MVS |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Trigger mode | External trigger, internal trigger |
|---|---|
| External trigger mode | Line trigger |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 15.8 W @ 12 VDC |
Mechanical
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
|---|---|
| Dimension | 132 mm × 76 mm × 55.5 mm (5.2" × 3.0" × 2.2") |
| Weight | Approx. 600 g (1.3 lb.) |
| Shipping weight (estimated) | 0.94 kg |
