Ring lights · 4 models · from $69.00

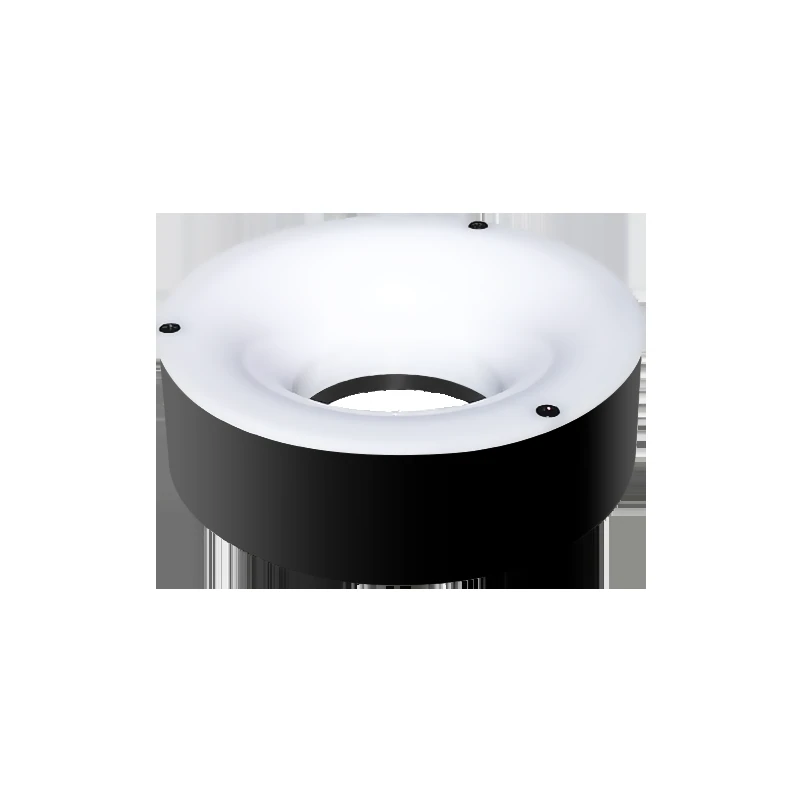

Shadowless ring light (RNS series)
The Shadowless ring light (RNS series) is a range of 4 ring lights from LumaSpec Vision, from $69.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Green, Blue, White |
|---|---|
| Size | Under 50 mm, 50-100 mm, 100-200 mm |
| Type | Diffused |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Uniformity diffuser
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, illumination angle, mounting and input wire length customization
- Outside diameter: 80 mm. Inside diameter: 36 mm.Thickness:26mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span: 50000 hours for red light and 30000 hours for white light.
- Suitable for specular surface detection, edge detection and providing shadowless illumination, etc.
Typical uses
- High-speed pipelined surface inspection of electronic components
- Dirt detection on the inner wall surface of cylindrical objects
- Beverage bottle cap surface dirt detection
- Bearing rust detection
- Plastic parts character detection
All 4 models in the Shadowless ring light (RNS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-RNS12035 | 5 W | $69.00 | 11 in stock | View | ||
| LS-RNS8036 | 3.8 W | $79.00 | 18 in stock | View | ||
| LS-RNS12071 | 8.5 W | $119.00 | 14 in stock | View | ||
| LS-RNS145100 | 12 W | $159.00 | 13 in stock | View |
