Ring lights

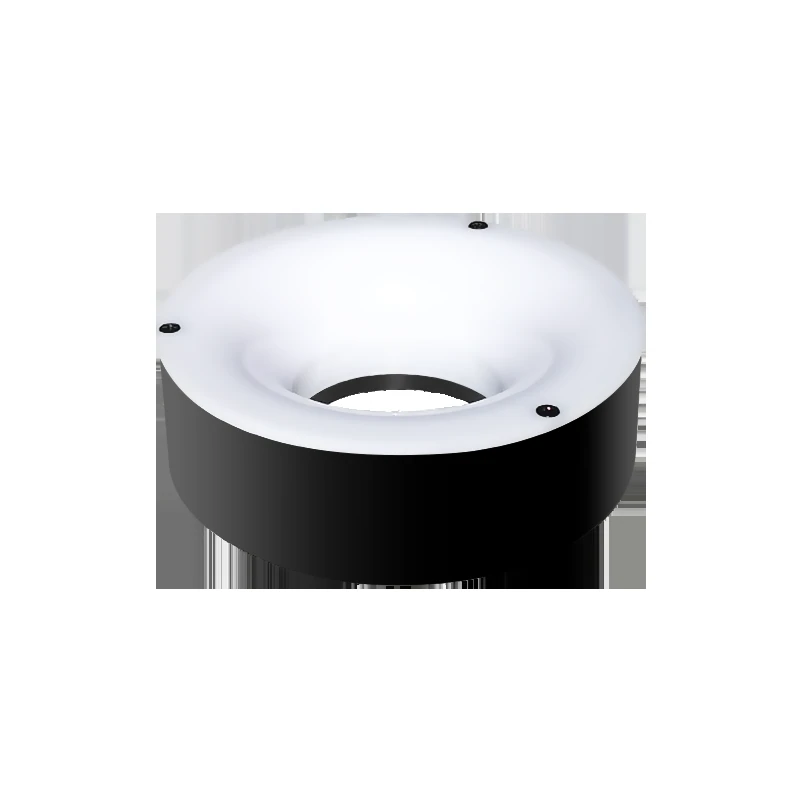

Shadowless ring light (RNS series) (LS-RNS12035)
Model LS-RNS12035
Shadowless ring light with SMD LEDs and a uniformity diffuser for even, diffuse illumination.
Features
- Uniformity diffuser
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, illumination angle, mounting and input wire length customization
Specifications
| Model | LS-RNS12035 |
|---|---|
| Voltage | 24 V DC |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Voltage (V) | 24 |
| Power blue/green/white (W) | 5 |
| Inner diameter (mm) | 35 |
| Outer diameter (mm) | 120 |
| Thickness (mm) | 31 |
| LED SMD | yes |
| Uniformity diffuser | yes |
| Shipping weight | 0.20 kg |
Applications
- High-speed pipelined surface inspection of electronic components
- Dirt detection on the inner wall surface of cylindrical objects
- Beverage bottle cap surface dirt detection
- Bearing rust detection
- Plastic parts character detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Shadowless ring light (RNS series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-RNS8036 | 3.8 W | $79.00 | 18 in stock | View | ||
| LS-RNS12071 | 8.5 W | $119.00 | 14 in stock | View | ||
| LS-RNS145100 | 12 W | $159.00 | 13 in stock | View |
