Ring lights · 41 models · from $49.00

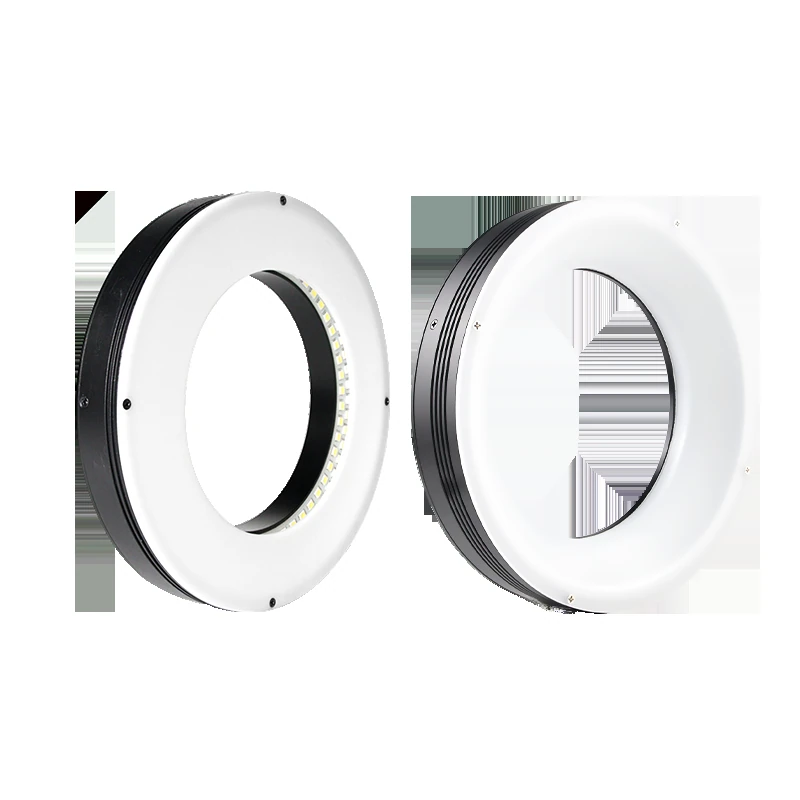

Ring light with diffuser (2RND series)
The Ring light with diffuser (2RND series) is a range of 41 ring lights from LumaSpec Vision, from $49.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Blue, White |
|---|---|
| Size | Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm |
| Type | Diffused |
| Angle | 30°, 45°, 60°, 90° |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Uniformity diffuser on every model
- Light angles 30, 45, 60 and 90 degrees
- SMD and DIP LED versions
- Three-colour RGB light source, diameter/height, wavelength/colour temperature, illumination angle, mounting and wire length customization
- Optional DIP/SMD lamp bead type.
- Outside diameter: 60mm, Inside diameter: 22mm, Thickness: 20mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
Typical uses
- Surface bumps, scratches and other defects detection
- Print character, mark, bar code, fingerprint image recognition
- Auto parts defect detection
- Nut defect detection
All 41 models in the Ring light with diffuser (2RND series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2RND5320A45 | 2.9 W | $49.00 | 12 in stock | View | ||
| LS-2RND6022A30 | 2.9 W | $59.00 | 10 in stock | View | ||
| LS-2RND6025A45 | 3.8 W | $59.00 | 7 in stock | View | ||
| LS-2RND6025A60 | 2.9 W | $59.00 | 9 in stock | View | ||
| LS-2RND7035A30 | 4.8 W | $69.00 | 9 in stock | View | ||
| LS-2RND7035A45 | 3.4 W | $69.00 | 9 in stock | View | ||
| LS-2RND7035A60 | 4.8 W | $69.00 | 8 in stock | View | ||
| LS-2RND6030A90 | 2.9 W | $69.00 | 11 in stock | View | ||
| LS-2RND9040A60 | 7.9 W | $79.00 | 10 in stock | View | ||
| LS-2RND7040A90 | 3.4 W | $79.00 | 9 in stock | View | ||
| LS-2RND8040A90 | 5.8 W | $79.00 | 9 in stock | View | ||
| LS-2RND9040A90 | 8.2 W | $79.00 | 8 in stock | View | ||
| LS-2RND10040A90 | 11.5 W | $79.00 | 9 in stock | View | ||
| LS-2RND8045A30 | 5.3 W | $89.00 | 11 in stock | View | ||
| LS-2RND9045A30 | 6.9 W | $89.00 | 9 in stock | View | ||
| LS-2RND8045A45 | 5.8 W | $89.00 | 10 in stock | View | ||
| LS-2RND9045A45 | 6.9 W | $89.00 | 10 in stock | View | ||
| LS-2RND8045A60 | 5.3 W | $89.00 | 11 in stock | View | ||
| LS-2RND10050A60 | 8.4 W | $89.00 | 13 in stock | View | ||
| LS-2RND12050A90 | 13.4 W | $89.00 | 9 in stock | View | ||
| LS-2RND10055A30 | 6.9 W | $99.00 | 11 in stock | View | ||
| LS-2RND10055A45 | 9 W | $99.00 | 10 in stock | View | ||
| LS-2RND12060A60 | 13.2 W | $109.00 | 11 in stock | View | ||
| LS-2RND12070A45 | 14.8 W | $119.00 | 7 in stock | View | ||
| LS-2RND12075A30 | 9.5 W | $129.00 | 7 in stock | View | ||
| LS-2RND150100A45 | 19 W | $159.00 | 10 in stock | View | ||
| LS-2RND15095A60 | 18 W | $159.00 | 12 in stock | View | ||
| LS-2RND15095A90 | 16.3 W | $159.00 | 11 in stock | View | ||
| LS-2RND150105A30 | 12.7 W | $169.00 | 11 in stock | View | ||
| LS-2RND180130A30 | 19 W | $199.00 | 9 in stock | View | ||
| LS-2RND180130A45 | 23.8 W | $199.00 | 10 in stock | View | ||
| LS-2RND180125A60 | 23.2 W | $199.00 | 11 in stock | View | ||
| LS-2RND180125A90 | 20.6 W | $199.00 | 12 in stock | View | ||
| LS-2RND200158A30 | 23.8 W | $239.00 | 14 in stock | View | ||
| LS-2RND200154A45 | 23.8 W | $239.00 | 12 in stock | View | ||
| LS-2RND208154A60 | 25.3 W | $239.00 | 10 in stock | View | ||
| LS-2RND200154A90 | 21.1 W | $239.00 | 11 in stock | View | ||
| LS-2RND250204A45 | 29.6 W | $299.00 | 13 in stock | View | ||
| LS-2RND250202A60 | 25.3 W | $299.00 | 8 in stock | View | ||
| LS-2RND250204A90 | 26.9 W | $299.00 | 13 in stock | View | ||
| LS-2RND250206A30 | 28.5 W | $309.00 | 12 in stock | View |
