Ring lights · 8 models · from $89.00

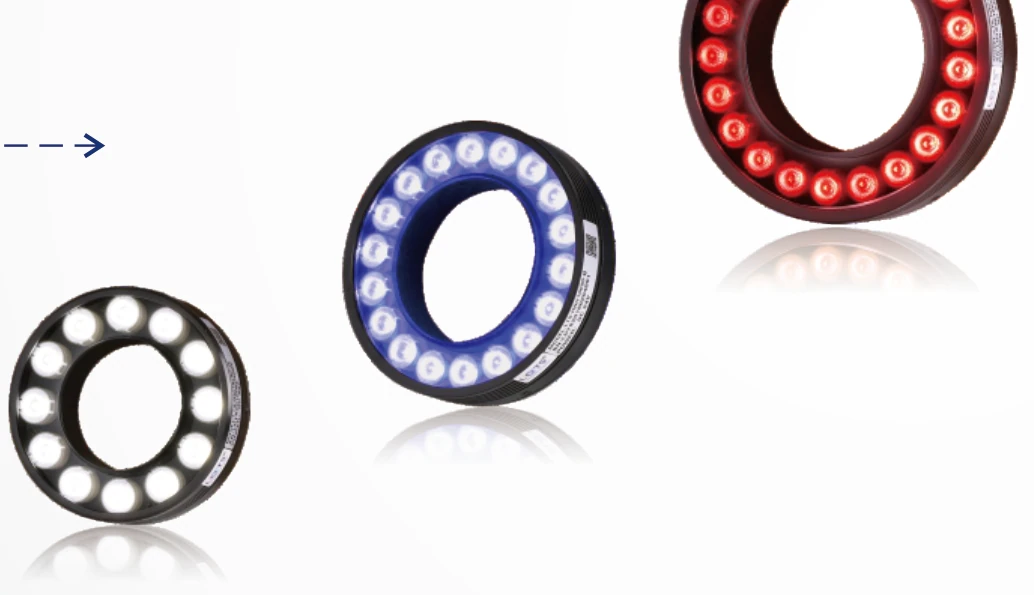

High power ring light (RNH)
The High power ring light (RNH) is a range of 8 ring lights from LumaSpec Vision, from $89.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 40 mm, 77 mm, 92 mm, 102 mm, 110 mm, 142 mm, 212 mm, 292 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- High power LEDs, uniform arraying
- Triple luminance of a common ring light
- Good thermal design, steady emitting, long life-span
- Dimension can be customized
- Options: polarized plate, lens shackle
- Customizable: combined light, outer & inner diameter, colour & colour temperature, cable length, installation method
- High power LED used, uniform arraying
- Triple luminance than common ring light
Typical uses
- Long distance illumination
- High speed assembly line illumination
- Large area illumination
- Type-C connector stitch inspection
- Long distance Illumination
All 8 models in the High power ring light (RNH)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-RNH4590 | 40 mm | 2.4 W | $89.00 | 8 in stock | View | |
| LS-RNH8490 | 77 mm | 4.8 W | $139.00 | 18 in stock | View | |
| LS-RNH10090 | 92 mm | 7.2 W | $159.00 | 11 in stock | View | |
| LS-RNH11090 | 102 mm | 9.6 W | $179.00 | 12 in stock | View | |
| LS-RNH12090 | 110 mm | 7.2 W | $189.00 | 14 in stock | View | |
| LS-RNH15090 | 142 mm | 9.6 W | $229.00 | 18 in stock | View | |
| LS-RNH22090 | 212 mm | 14.4 W | $329.00 | 14 in stock | View | |
| LS-RNH30090 | 292 mm | 19.2 W | $439.00 | 16 in stock | View |
