Ring lights · 4 models · from $69.00

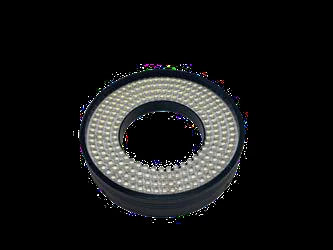

Ring light, 75 degree series (LS-R)
The Ring light, 75 degree series (LS-R) is a range of 4 ring lights from LumaSpec Vision, from $69.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 32 mm dia., 75°, 70 mm dia., 75°, 90 mm dia., 75°, 103 mm dia., 75° |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Type | Standard |
| Angle | 60° |
| Voltage | 24 V |
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Typical uses
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
All 4 models in the Ring light, 75 degree series (LS-R)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-R3275 | 32 mm dia., 75° | 1.7 W | $69.00 | 16 in stock | View | |
| LS-R7075 | 70 mm dia., 75° | 1.7 W | $119.00 | 22 in stock | View | |
| LS-R9075 | 90 mm dia., 75° | 5.6 W | $149.00 | 20 in stock | View | |
| LS-R10375 | 103 mm dia., 75° | 11 W | $169.00 | 22 in stock | View |
