Ring lights · 87 models · from $59.00

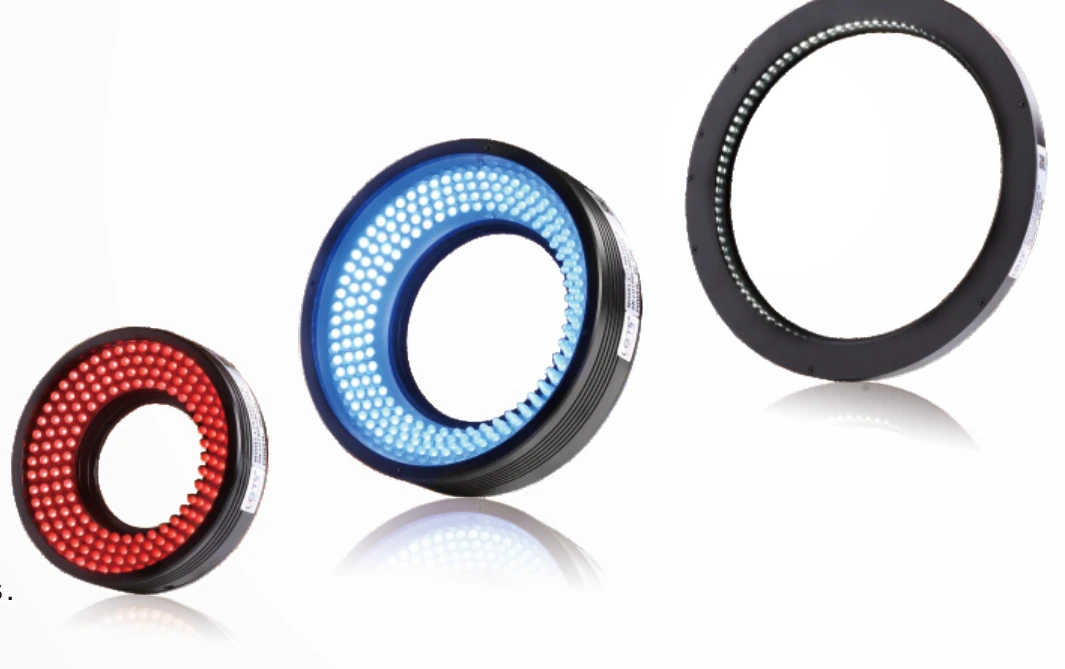

Ring light (RN)
The Ring light (RN) is a range of 87 ring lights from LumaSpec Vision, from $59.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 228 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Diffused, Standard |
| Angle | Low angle (0-15°), 30°, 45°, 60°, 90° |
| Voltage | 24 V |
Features
- Various angles optional, angle can be customized
- Easy to install, compact design
- High-density LED array, high luminance
- Diffuser plate optional, adapts to different applications
- Wire jacket covers the cable exit against pulling
- Options: flat diffuser plate (reduces lamp shadow and glare on reflective workpieces), cup diffuser plate (matches the light angle for a more uniform, steady emitting area), polarized plate (used with a polarized lens to remove glare from uneven surfaces), lens shackle (fastens the light to the lens thread where space is small)
- Customizable: outer & inner diameter, colour & colour temperature, cable length, installation method, emitting angle, shape, combined, multi-area control
- Various angle optional, angle can be customized
Typical uses
- IC chip appearance and character inspection
- PCB inspection
- Tag inspection
- Microscope illumination
- Screw shape inspection (low angle / high angle)
- The inspection of IC chip appearance and character
All 87 models in the Ring light (RN)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-RN2860 | 0.5 W | $59.00 | 11 in stock | View | ||
| LS-RN2890 | 0.5 W | $59.00 | 16 in stock | View | ||
| LS-RN3590 | 1 W | $69.00 | 18 in stock | View | ||
| LS-RN3275 | 1.2 W | $69.00 | 11 in stock | View | ||
| LS-RN4090 | 1 W | $79.00 | 15 in stock | View | ||
| LS-RN3875 | 1.2 W | $79.00 | 15 in stock | View | ||
| LS-RN4265 | 1.4 W | $79.00 | 11 in stock | View | ||
| LS-RN5000 | 1.4 W | $89.00 | 17 in stock | View | ||
| LS-RN5030 | 2.9 W | $89.00 | 12 in stock | View | ||
| LS-RN5045 | 2.9 W | $89.00 | 14 in stock | View | ||
| LS-RN5060 | 1.7 W | $89.00 | 14 in stock | View | ||
| LS-RN5090 | 1.4 W | $89.00 | 13 in stock | View | ||
| LS-RN4550 | 0.7 W | $89.00 | 16 in stock | View | ||
| LS-RN5075 | 1.7 W | $89.00 | 12 in stock | View | ||
| LS-RN5590 | 2.4 W | $99.00 | 10 in stock | View | ||
| LS-RN5570 | 2.4 W | $99.00 | 12 in stock | View | ||
| LS-RN6000 | 1.8 W | $109.00 | 12 in stock | View | ||
| LS-RN6030 | 3.4 W | $109.00 | 15 in stock | View | ||
| LS-RN6060 | 2.4 W | $109.00 | 14 in stock | View | ||
| LS-RN7030 | 3.8 W | $119.00 | 11 in stock | View | ||
| LS-RN7045 | 3.8 W | $119.00 | 16 in stock | View | ||
| LS-RN6660 | 3.6 W | $119.00 | 13 in stock | View | ||
| LS-RN6760 | 3.6 W | $119.00 | 13 in stock | View | ||
| LS-RN7060 | 3.4 W | $119.00 | 9 in stock | View | ||
| LS-RN7090 | 3.6 W | $119.00 | 14 in stock | View | ||
| LS-RN6975 | 3.6 W | $119.00 | 15 in stock | View | ||
| LS-RN7400 | 2.1 W | $129.00 | 15 in stock | View | ||
| LS-RN7430 | 2.9 W | $129.00 | 12 in stock | View | ||
| LS-RN7460 | 3.8 W | $129.00 | 12 in stock | View | ||
| LS-RN7475 | 4.3 W | $129.00 | 17 in stock | View | ||
| LS-RN7485 | 3.6 W | $129.00 | 14 in stock | View | ||
| LS-RN8080 | 4.3 W | $139.00 | 15 in stock | View | ||
| LS-RN9030 | 5.8 W | $149.00 | 15 in stock | View | ||
| LS-RN9045 | 5 W | $149.00 | 16 in stock | View | ||
| LS-RN9060 | 4.3 W | $149.00 | 13 in stock | View | ||
| LS-RN9090 | 6 W | $149.00 | 15 in stock | View | ||
| LS-RN9070 | 6.7 W | $149.00 | 15 in stock | View | ||
| LS-RN9600 | 2.9 W | $159.00 | 17 in stock | View | ||
| LS-RN10030 | 7.2 W | $159.00 | 14 in stock | View | ||
| LS-RN10045 | 7.9 W | $159.00 | 11 in stock | View | ||
| LS-RN10060 | 7.2 W | $159.00 | 15 in stock | View | ||
| LS-RN10090 | 8.6 W | $159.00 | 14 in stock | View | ||
| LS-RN9610 | 3.8 W | $159.00 | 15 in stock | View | ||
| LS-RN10375 | 7.2 W | $169.00 | 18 in stock | View | ||
| LS-RN11090 | 6 W | $179.00 | 16 in stock | View | ||
| LS-RN12000 | 3.6 W | $189.00 | 15 in stock | View | ||
| LS-RN12030 | 7.2 W | $189.00 | 12 in stock | View | ||
| LS-RN12230 | 7.2 W | $189.00 | 8 in stock | View | ||
| LS-RN12045 | 13.2 W | $189.00 | 16 in stock | View | ||
| LS-RN12060 | 13 W | $189.00 | 17 in stock | View | ||
| LS-RN12090 | 12 W | $189.00 | 14 in stock | View | ||
| LS-RN12015 | 7.2 W | $189.00 | 14 in stock | View | ||
| LS-RN12050 | 9.6 W | $189.00 | 14 in stock | View | ||
| LS-RN12080 | 9.4 W | $189.00 | 14 in stock | View | ||
| LS-RN13590 | 10.1 W | $209.00 | 17 in stock | View | ||
| LS-RN14600 | 4.7 W | $229.00 | 13 in stock | View | ||
| LS-RN15000 | 4.3 W | $229.00 | 13 in stock | View | ||
| LS-RN15030 | 15.1 W | $229.00 | 14 in stock | View | ||
| LS-RN15045 | 15.1 W | $229.00 | 15 in stock | View | ||
| LS-RN15060 | 14.4 W | $229.00 | 11 in stock | View | ||
| LS-RN15090 | 20.4 W | $229.00 | 15 in stock | View | ||
| LS-RN14615 | 6.2 W | $229.00 | 12 in stock | View | ||
| LS-RN16590 | 24.5 W | $249.00 | 14 in stock | View | ||
| LS-RN16517 | 7.2 W | $249.00 | 11 in stock | View | ||
| LS-RN17200 | 6.2 W | $259.00 | 15 in stock | View | ||
| LS-RN17315 | 7.4 W | $259.00 | 12 in stock | View | ||
| LS-RN18030 | 14.9 W | $269.00 | 15 in stock | View | ||
| LS-RN18060 | 14.4 W | $269.00 | 13 in stock | View | ||
| LS-RN18015 | 12.2 W | $269.00 | 12 in stock | View | ||
| LS-RN18075 | 14.4 W | $269.00 | 15 in stock | View | ||
| LS-RN18430 | 15.6 W | $279.00 | 10 in stock | View | ||
| LS-RN20000 | 5.8 W | $299.00 | 10 in stock | View | ||
| LS-RN20030 | 20.2 W | $299.00 | 13 in stock | View | ||
| LS-RN20045 | 16.8 W | $299.00 | 11 in stock | View | ||
| LS-RN20060 | 16.1 W | $299.00 | 15 in stock | View | ||
| LS-RN20090 | 32.4 W | $299.00 | 19 in stock | View | ||
| LS-RN21030 | 21.6 W | $309.00 | 13 in stock | View | ||
| LS-RN20860 | 16.8 W | $309.00 | 14 in stock | View | ||
| LS-RN21060 | 17.3 W | $309.00 | 16 in stock | View | ||
| LS-RN22000 | 6.5 W | $329.00 | 17 in stock | View | ||
| LS-RN24030 | 228 mm | 24.5 W | $349.00 | 14 in stock | View | |
| LS-RN25030 | 27.1 W | $369.00 | 14 in stock | View | ||
| LS-RN25060 | 25.9 W | $369.00 | 13 in stock | View | ||
| LS-RN25000 | $369.00 | 12 in stock | View | |||
| LS-RN30000 | 10.8 W | $439.00 | 16 in stock | View | ||
| LS-RN30030 | 33.1 W | $439.00 | 16 in stock | View | ||
| LS-RN35030 | 36.5 W | $499.00 | 11 in stock | View |
