Ring lights · 47 models · from $69.00

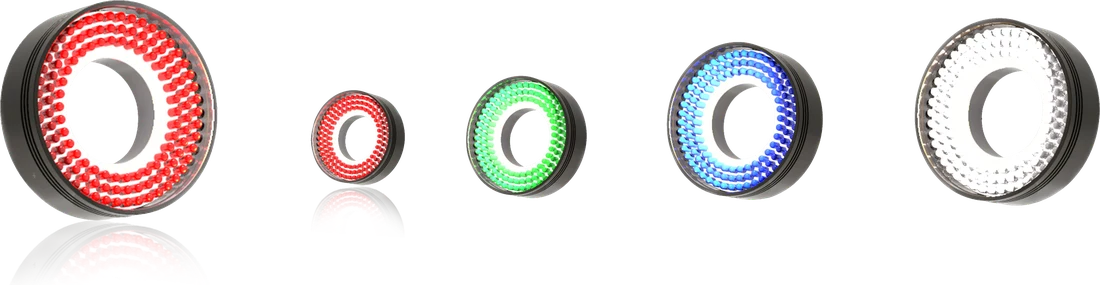

Ring light (HLR)
The Ring light (HLR) is a range of 47 ring lights from LumaSpec Vision, from $69.00. It comes in 27 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 32 mm OD, 35 mm OD, 42 mm OD, 48 mm OD, 50 mm OD, 60 mm OD, 66 mm OD, 70 mm OD, 72 mm OD, 74 mm OD, 75 mm OD, 90 mm OD, 96 mm OD, 100 mm OD, 110 mm OD, 114 mm OD and 11 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Angle | Low angle (0-15°), 30°, 45°, 60°, 90° |
| Voltage | 24 V |
Features
- Angles customizable to requirements.
- Wavelength and color temperature are optional, and different color combinations are also available.
- Compact design, easy installation.
- High-density LED array for even brightness.
- Optional diffuser for uniform light.
Typical uses
- Size/recognition
- Microscope illumination
- LCD calibration
- 2D code reading
All 47 models in the Ring light (HLR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HLR-32-70 | 32 mm OD | 1.5 W | $69.00 | 14 in stock | View | |
| LS-HLR-35-90 | 35 mm OD | 2 W | $69.00 | 13 in stock | View | |
| LS-HLR-42-65 | 42 mm OD | 1.7 W | $79.00 | 16 in stock | View | |
| LS-HLR-50-45 | 50 mm OD | 2 W | $89.00 | 11 in stock | View | |
| LS-HLR-50-60 | 50 mm OD | 2.5 W | $89.00 | 13 in stock | View | |
| LS-HLR-50-75 | 50 mm OD | 2.5 W | $89.00 | 9 in stock | View | |
| LS-HLR-50-90 | 50 mm OD | 2.5 W | $89.00 | 13 in stock | View | |
| LS-HLR-48-30 | 48 mm OD | 2.5 W | $89.00 | 12 in stock | View | |
| LS-HLR-50-30 | 50 mm OD | 3 W | $89.00 | 15 in stock | View | |
| LS-HLR-60-60 | 60 mm OD | 2.5 W | $109.00 | 17 in stock | View | |
| LS-HLR-66-60 | 60 mm OD | 4 W | $109.00 | 13 in stock | View | |
| LS-HLR-70-45 | 70 mm OD | 6 W | $119.00 | 16 in stock | View | |
| LS-HLR-70-60 | 70 mm OD | 4.5 W | $119.00 | 13 in stock | View | |
| LS-HLR-70-90 | 70 mm OD | 4.6 W | $119.00 | 13 in stock | View | |
| LS-HLR-72-75 | 72 mm OD | 5 W | $119.00 | 16 in stock | View | |
| LS-HLR-66-30 | 66 mm OD | 4 W | $119.00 | 17 in stock | View | |
| LS-HLR-74-60 | 74 mm OD | 6 W | $129.00 | 10 in stock | View | |
| LS-HLR-74-30 | 74 mm OD | 4.5 W | $129.00 | 13 in stock | View | |
| LS-HLR-75-00 | 75 mm OD | 2 W | $129.00 | 14 in stock | View | |
| LS-HLR-90-45 | 90 mm OD | 8 W | $149.00 | 14 in stock | View | |
| LS-HLR-90-70 | 90 mm OD | 8 W | $149.00 | 10 in stock | View | |
| LS-HLR-90-80 | 90 mm OD | 12.5 W | $149.00 | 12 in stock | View | |
| LS-HLR-90-15 | 90 mm OD | 6 W | $149.00 | 11 in stock | View | |
| LS-HLR-100-75 | 100 mm OD | 9.5 W | $159.00 | 16 in stock | View | |
| LS-HLR-100-90 | 100 mm OD | 10 W | $159.00 | 11 in stock | View | |
| LS-HLR-96-00 | 96 mm OD | 3.5 W | $159.00 | 16 in stock | View | |
| LS-HLR-100-30 | 100 mm OD | 7.5 W | $159.00 | 16 in stock | View | |
| LS-HLR-110-60 | 110 mm OD | 13 W | $179.00 | 11 in stock | View | |
| LS-HLR-114-80 | 114 mm OD | 14.5 W | $179.00 | 13 in stock | View | |
| LS-HLR-120-45 | 120 mm OD | 16 W | $189.00 | 15 in stock | View | |
| LS-HLR-120-50 | 120 mm OD | 16 W | $189.00 | 11 in stock | View | |
| LS-HLR-120-75 | 120 mm OD | 16 W | $189.00 | 12 in stock | View | |
| LS-HLR-120-90 | 120 mm OD | 16 W | $189.00 | 11 in stock | View | |
| LS-HLR-120-30 | 120 mm OD | 10 W | $189.00 | 14 in stock | View | |
| LS-HLR-132-15 | 132 mm OD | 12 W | $209.00 | 14 in stock | View | |
| LS-HLR-140-70 | 140 mm OD | 18 W | $219.00 | 15 in stock | View | |
| LS-HLR-150-90 | 150 mm OD | 22 W | $229.00 | 11 in stock | View | |
| LS-HLR-146-00 | 146 mm OD | 4.5 W | $229.00 | 17 in stock | View | |
| LS-HLR-150-30 | 150 mm OD | 18.5 W | $229.00 | 12 in stock | View | |
| LS-HLR-164-70 | 164 mm OD | 23 W | $249.00 | 17 in stock | View | |
| LS-HLR-180-60 | 180 mm OD | 26 W | $269.00 | 11 in stock | View | |
| LS-HLR-180-80 | 180 mm OD | 26 W | $269.00 | 13 in stock | View | |
| LS-HLR-176-00 | 176 mm OD | 6 W | $269.00 | 12 in stock | View | |
| LS-HLR-180-30 | 180 mm OD | 22 W | $269.00 | 13 in stock | View | |
| LS-HLR-210-60 | 210 mm OD | 31 W | $309.00 | 16 in stock | View | |
| LS-HLR-206-00 | 206 mm OD | 8 W | $309.00 | 16 in stock | View | |
| LS-HLR-208-25 | 208 mm OD | 18.5 W | $309.00 | 13 in stock | View |
