Ring lights · 15 models · from $49.00

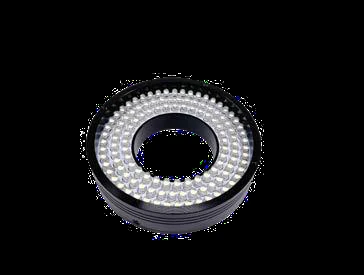

Ring light, 90 degree series (LS-R)
The Ring light, 90 degree series (LS-R) is a range of 15 ring lights from LumaSpec Vision, from $49.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 mm dia., 90°, 28 mm dia., 90°, 36 mm dia., 90°, 42 mm dia., 90°, 50 mm dia., 90°, 52 mm dia., 90°, 60 mm dia., 90°, 70 mm dia., 90°, 80 mm dia., 90°, 90 mm dia., 90°, 100 mm dia., 90°, 120 mm dia., 90°, 150 mm dia., 90°, 180 mm dia., 90° |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Type | Standard |
| Angle | 90° |
| Voltage | 24 V |
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Typical uses
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
All 15 models in the Ring light, 90 degree series (LS-R)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-R2090 | 20 mm dia., 90° | 1.5 W | $49.00 | 26 in stock | View | |
| LS-R2890 | 28 mm dia., 90° | 1.7 W | $59.00 | 23 in stock | View | |
| LS-R3690 | 36 mm dia., 90° | 1.7 W | $79.00 | 19 in stock | View | |
| LS-R4290 | 42 mm dia., 90° | 1.8 W | $79.00 | 22 in stock | View | |
| LS-R5090 | 50 mm dia., 90° | 1.9 W | $89.00 | 23 in stock | View | |
| LS-R5290 | 52 mm dia., 90° | 2.3 W | $99.00 | 16 in stock | View | |
| LS-R6090 | 60 mm dia., 90° | 2 W | $109.00 | 21 in stock | View | |
| LS-R7090 | 70 mm dia., 90° | 2.9 W | $119.00 | 21 in stock | View | |
| LS-R8090 | 80 mm dia., 90° | 2.9 W | $139.00 | 19 in stock | View | |
| LS-R9090 | 90 mm dia., 90° | 5.6 W | $149.00 | 19 in stock | View | |
| LS-R10090 | 100 mm dia., 90° | 2.5 W | $159.00 | 24 in stock | View | |
| LS-R12090-48 | 120 mm dia., 90° | 7.2 W | $189.00 | 15 in stock | View | |
| LS-R12090-70 | 120 mm dia., 90° | 7.6 W | $189.00 | 28 in stock | View | |
| LS-R15090 | 150 mm dia., 90° | 8 W | $229.00 | 21 in stock | View | |
| LS-R18090 | 180 mm dia., 90° | 8 W | $269.00 | 20 in stock | View |
