Ring lights · 52 models · from $49.00

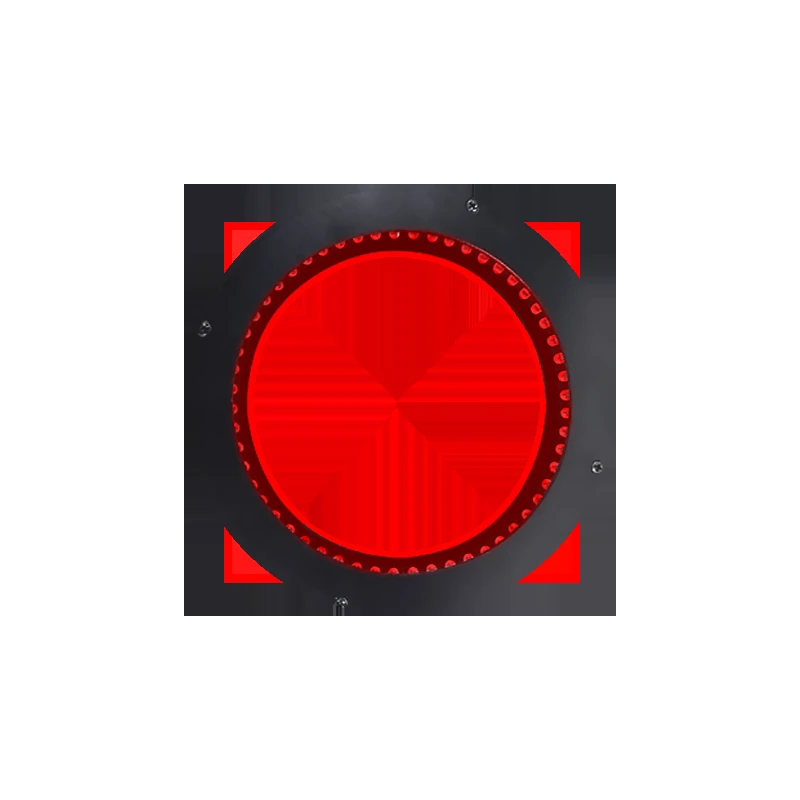

Ring light (2RN series)
The Ring light (2RN series) is a range of 52 ring lights from LumaSpec Vision, from $49.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Blue, White |
|---|---|
| Size | Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm |
| Type | Standard |
| Angle | Low angle (0-15°), 30°, 45°, 60°, 90° |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Light angles 0, 30, 45, 60 and 90 degrees
- SMD and DIP LED versions
- Inner and outer diameter, height, wavelength/colour temperature, illumination angle, mounting and wire length customization
- Three-colour RGB light source customization
- Outside diameter: 60 mm. Inside diameter: 30 mm.Thickness:11mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.
Typical uses
- PCB & plastic containers inspection
- Electronic components inspection & OCR on integrated circuits
- Microscope illumination, general appearance inspection
- LCD correction, font label detection
- Ceramic surface profile detection
- Fastener nut cross groove detection
All 52 models in the Ring light (2RN series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2RN5320A45 | 2.9 W | $49.00 | 11 in stock | View | ||
| LS-2RN6022A30 | 2.9 W | $59.00 | 9 in stock | View | ||
| LS-2RN6025A45 | 3.8 W | $59.00 | 10 in stock | View | ||
| LS-2RN6025A60 | 2.9 W | $59.00 | 9 in stock | View | ||
| LS-2RN6030A0 | 1.2 W | $69.00 | 10 in stock | View | ||
| LS-2RN7035A0 | 1.2 W | $69.00 | 10 in stock | View | ||
| LS-2RN7035A30 | 4.8 W | $69.00 | 9 in stock | View | ||
| LS-2RN7035A45 | 3.4 W | $69.00 | 11 in stock | View | ||
| LS-2RN7035A60 | 4.8 W | $69.00 | 10 in stock | View | ||
| LS-2RN6030A90 | 2.9 W | $69.00 | 9 in stock | View | ||
| LS-2RN9040A60 | 7.9 W | $79.00 | 12 in stock | View | ||
| LS-2RN7040A90 | 3.4 W | $79.00 | 11 in stock | View | ||
| LS-2RN8040A90 | 5.8 W | $79.00 | 11 in stock | View | ||
| LS-2RN9040A90 | 8.2 W | $79.00 | 12 in stock | View | ||
| LS-2RN10040A90 | 11.5 W | $79.00 | 11 in stock | View | ||
| LS-2RN8045A0 | 1.6 W | $89.00 | 11 in stock | View | ||
| LS-2RN8045A30 | 5.3 W | $89.00 | 10 in stock | View | ||
| LS-2RN9045A30 | 6.9 W | $89.00 | 10 in stock | View | ||
| LS-2RN8045A45 | 5.8 W | $89.00 | 9 in stock | View | ||
| LS-2RN9045A45 | 6.9 W | $89.00 | 14 in stock | View | ||
| LS-2RN8045A60 | 5.3 W | $89.00 | 12 in stock | View | ||
| LS-2RN10050A60 | 8.4 W | $89.00 | 7 in stock | View | ||
| LS-2RN12050A90 | 13.4 W | $89.00 | 9 in stock | View | ||
| LS-2RN9055A0 | 1.9 W | $99.00 | 13 in stock | View | ||
| LS-2RN10055A30 | 6.9 W | $99.00 | 9 in stock | View | ||
| LS-2RN10055A45 | 9 W | $99.00 | 9 in stock | View | ||
| LS-2RN10065A0 | 1.9 W | $109.00 | 11 in stock | View | ||
| LS-2RN12060A60 | 13.2 W | $109.00 | 7 in stock | View | ||
| LS-2RN12070A45 | 14.8 W | $119.00 | 11 in stock | View | ||
| LS-2RN12075A30 | 9.5 W | $129.00 | 9 in stock | View | ||
| LS-2RN12085A0 | 2.5 W | $139.00 | 7 in stock | View | ||
| LS-2RN150100A45 | 19 W | $159.00 | 12 in stock | View | ||
| LS-2RN15095A60 | 18 W | $159.00 | 10 in stock | View | ||
| LS-2RN15095A90 | 16.3 W | $159.00 | 15 in stock | View | ||
| LS-2RN150105A30 | 12.7 W | $169.00 | 7 in stock | View | ||
| LS-2RN150115A0 | 3.7 W | $179.00 | 8 in stock | View | ||
| LS-2RN180130A30 | 19 W | $199.00 | 10 in stock | View | ||
| LS-2RN180130A45 | 23.8 W | $199.00 | 9 in stock | View | ||
| LS-2RN180125A60 | 23.2 W | $199.00 | 10 in stock | View | ||
| LS-2RN180125A90 | 20.6 W | $199.00 | 8 in stock | View | ||
| LS-2RN180145A0 | 4.7 W | $219.00 | 9 in stock | View | ||
| LS-2RN200158A30 | 23.8 W | $239.00 | 11 in stock | View | ||
| LS-2RN200154A45 | 23.8 W | $239.00 | 11 in stock | View | ||
| LS-2RN208154A60 | 25.3 W | $239.00 | 10 in stock | View | ||
| LS-2RN200154A90 | 21.1 W | $239.00 | 10 in stock | View | ||
| LS-2RN200170A0 | 4.7 W | $259.00 | 9 in stock | View | ||
| LS-2RN250204A45 | 29.6 W | $299.00 | 9 in stock | View | ||
| LS-2RN250202A60 | 25.3 W | $299.00 | 9 in stock | View | ||
| LS-2RN250204A90 | 26.9 W | $299.00 | 12 in stock | View | ||
| LS-2BN250204A90 | $299.00 | 2 in stock | View | |||
| LS-2RN250206A30 | 28.5 W | $309.00 | 7 in stock | View | ||
| LS-2RN250220A0 | 6.3 W | $329.00 | 12 in stock | View |
