Ring lights · 13 models · from $99.00

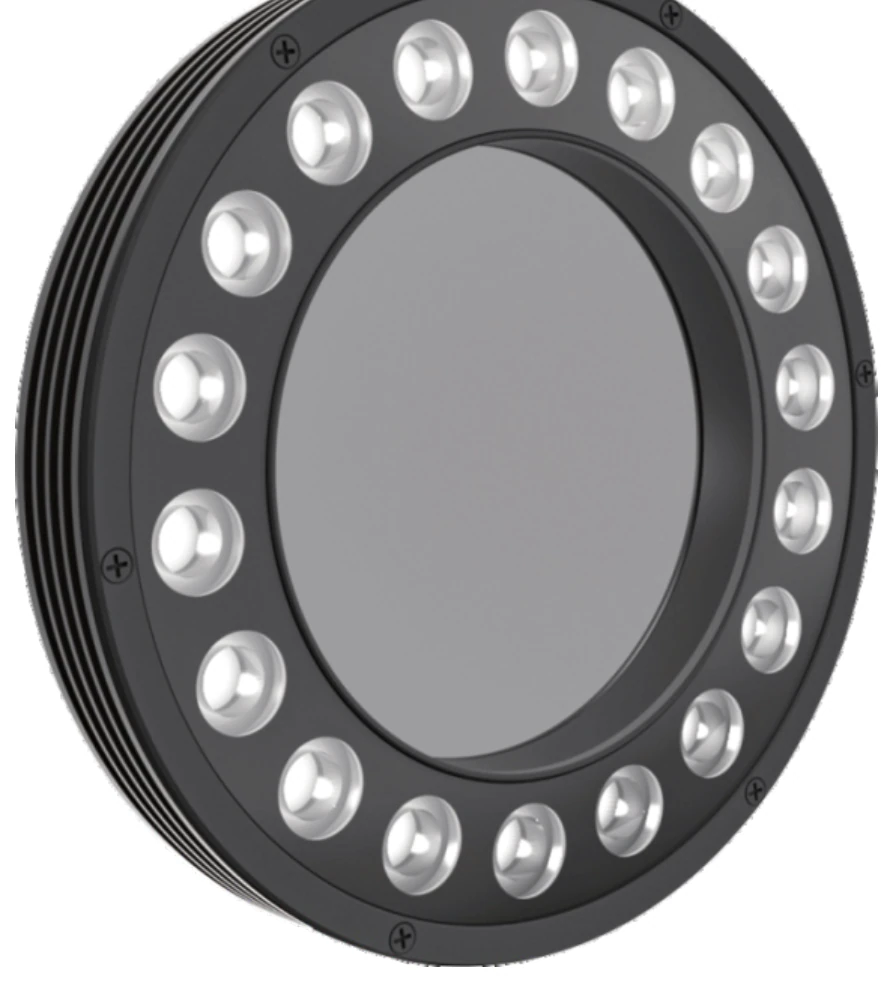

Polarised light, POR series
The Polarised light, POR series is a range of 13 ring lights from LumaSpec Vision, from $99.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 45 x 32 mm, 48 x 28 mm, 50 mm, 70 mm, 90 mm, 90 x 22 mm, 100 x 100 mm, 115 mm, 135 x 32 mm, 140 mm, 175 x 33 mm, 315 x 32 mm |
|---|---|
| Colour | Red, Blue, White |
| Type | Polarized |
| Voltage | 24 V |
Features
- Eliminates the light spots produced by the beads
- Eliminates interference caused by reflections on the objects
- Good heat dissipation using special thermal conductivity materials
- Various shapes, customisable to customer requirements
- Polariser and analyser integrated, convenient to observe and use
- Eliminates interference from reflections on the object
- Special thermally conductive material, good heat dissipation
- Focused (condensing) design raises brightness
Typical uses
- Product label location and character inspection
- Film classification and size testing of lithium batteries
- Bar code character reading
- Capacitor character and surface dirt inspection
- Screen printed character recognition for mobile phone cases, PADs, chargers
- Product label position and character inspection
All 13 models in the Polarised light, POR series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2POB5738 | 45 x 32 mm | 3.6 W | $99.00 | 9 in stock | View | |
| LS-POR6090 | 50 mm | 5 W | $109.00 | 5 in stock | View | |
| LS-POH4828 | 48 x 28 mm | 1.7 W | $109.00 | 6 in stock | View | |
| LS-POR8090 | 70 mm | 8.4 W | $139.00 | 7 in stock | View | |
| LS-POR10090 | 90 mm | 8.4 W | $159.00 | 7 in stock | View | |
| LS-POB10228 | 90 x 22 mm | 1.7 W | $169.00 | 2 in stock | View | |
| LS-POR12590 | 115 mm | 13 W | $199.00 | 10 in stock | View | |
| LS-POH100100 | 100 x 100 mm | 11 W | $209.00 | 4 in stock | View | |
| LS-POR15090 | 140 mm | 13 W | $229.00 | 6 in stock | View | |
| LS-2POB14738 | 135 x 32 mm | 10.8 W | $229.00 | 6 in stock | View | |
| LS-POB20540 | 175 x 33 mm | 17 W | $309.00 | 4 in stock | View | |
| LS-2POB23738 | 175 x 33 mm | 17 W | $349.00 | 9 in stock | View | |
| LS-2POB32738 | 315 x 32 mm | 25.2 W | $469.00 | 4 in stock | View |
