Ring lights

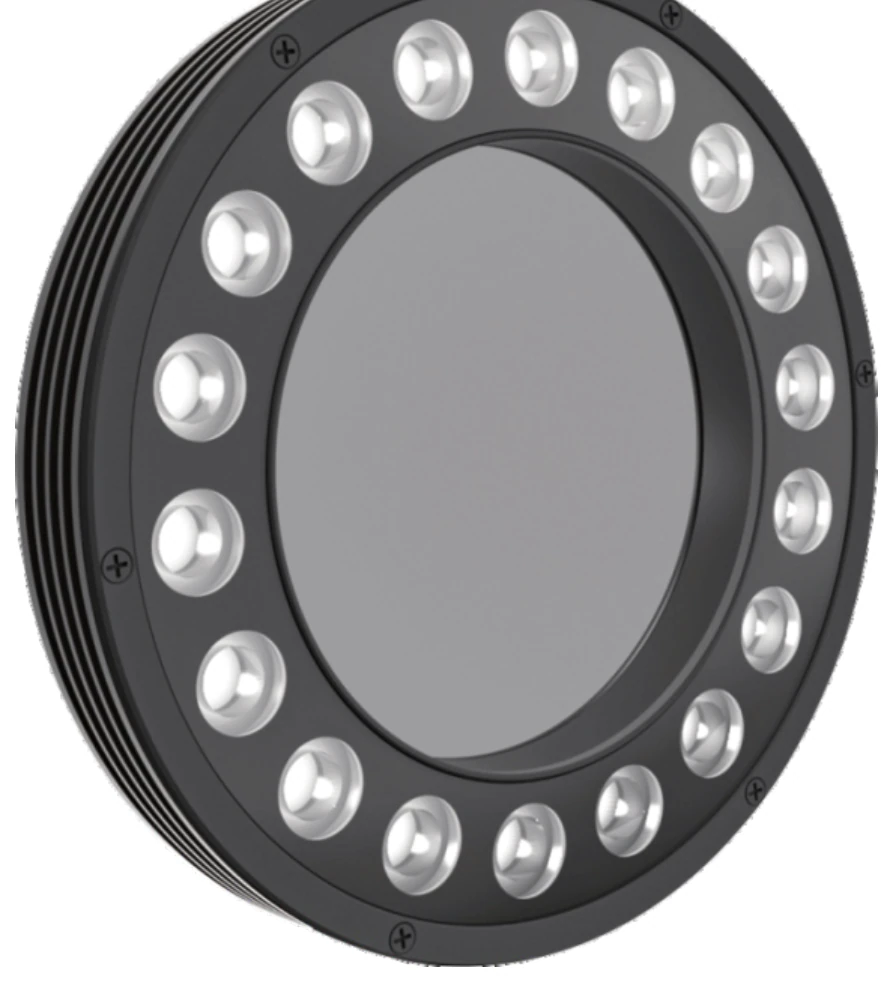

175 x 33 mm Polarised light, POR series (LS-POB20540)
Model LS-POB20540
Polarised lights that eliminate the light spots produced by the LED beads and interference from reflections on objects, with good heat dissipation from special thermally conductive materials.
Features
- Eliminates the light spots produced by the beads
- Eliminates interference caused by reflections on the objects
- Good heat dissipation using special thermal conductivity materials
- Various shapes, customisable to customer requirements
Specifications
| Model | LS-POB20540 |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-DPS, LS-APS, LS-SPS series (match the power of the light source) |
| Cable length (mm) | 500 |
| Power (W) | 17 |
| Luminous dimension (mm) | 175 x 33 |
| Overall size (mm) | L205 x W40 x H38 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Mounting | 2x2-M3 depth 6 |
| Shipping weight | 0.55 kg |
Applications
- Product label location and character inspection
- Film classification and size testing of lithium batteries
- Bar code character reading
- Capacitor character and surface dirt inspection
- Screen printed character recognition for mobile phone cases, PADs, chargers
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Polarised light, POR series series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-POR6090 | 50 mm | 5 W | $109.00 | 5 in stock | View | |
| LS-POR8090 | 70 mm | 8.4 W | $139.00 | 7 in stock | View | |
| LS-2POB23738 | 175 x 33 mm | 17 W | $139.00 | 9 in stock | View | |
| LS-POR15090 | 140 mm | 13 W | $229.00 | 6 in stock | View |
