Line scan cameras · 22 models · from $649.00

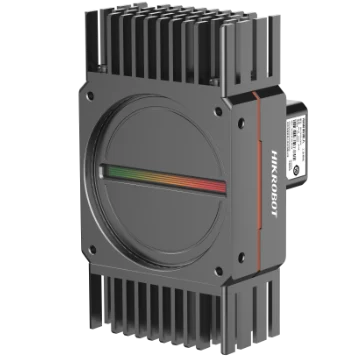

CL Series XoFLink Line Scan Cameras
The CL Series XoFLink Line Scan Cameras is a range of 22 line scan cameras from Hikrobot, from $649.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | XoFLink, Color, XoFLink, Mono, 4K, XoFLink, Color, 4K, XoFLink, Mono, 8K, XoFLink, Color, 8K, XoFLink, Mono, 16K, XoFLink, Color, 16K, XoFLink, Mono |
|---|---|
| Interface | XoFLink |
| Line length | 4K, 8K, 16K |
| Colour | Color, Mono |
| Pixel size | 3.5 μm, 5 μm, 7 μm |
| Image circle | 29 mm, 57 mm, 82 mm |
| Lens mount | M42, M72, F-mount |
Features
- Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment
- RGB true-color imaging with flexible exposure and acquisition modes
- Dual-channel XoF fiber ports for high-bandwidth transmission, line rates up to 66.6 kHz
- Bidirectional configurable I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Dual-channel XoF fiber ports for high-bandwidth transmission
- Flexible exposure and acquisition modes, 2-TDI support and line rates up to 200 kHz
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
All 22 models in the CL Series XoFLink Line Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-8KF2C-CR | XoFLink, Color | $649.00 | 4 in stock | View |
| MV-8KF2M-CR | XoFLink, Mono | $649.00 | 5 in stock | View |
| MV-CLD82-9ZF2M | XoFLink, Mono | $649.00 | 3 in stock | View |
| MV-CL042-91FM | 4K, XoFLink, Mono | $1,919.00 | 4 in stock | View |
| MV-CL042-91FC | 4K, XoFLink, Color | $1,919.00 | 4 in stock | View |
| MV-CL082-91F2M(2.0) | 8K, XoFLink, Mono | $1,919.00 | 4 in stock | View |
| MV-CL082-91F1M(2.0) | 8K, XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL083-91F2C(2.0) | 8K, XoFLink, Color | $1,919.00 | 3 in stock | View |
| MV-CL084-91F2M(2.0) | 8K, XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL083-B0F2C | XoFLink, Color | $1,919.00 | 4 in stock | View |
| MV-CL162-91F2M(2.0) | 16K, XoFLink, Mono | $1,919.00 | 4 in stock | View |
| MV-CL166-91F2C | 16K, XoFLink, Color | $1,919.00 | 5 in stock | View |
| MV-CL082-91F2M | 8K, XoFLink, Mono | $1,919.00 quote | 5 in stock | View |
| MV-CL162-91F2M (V2.0) | 16K, XoFLink, Mono | $1,919.00 | 3 in stock | View |
| MV-CL083-91F2C(V2.0) | 8K, XoFLink, Color | $1,919.00 | 5 in stock | View |
| MV-CL082-91F2M(V2.0) | 8K, XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL082-91F1M(V2.0) | 8K, XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL162-91F1M (V2.0) | 16K, XoFLink, Mono | $1,919.00 | 5 in stock | View |
| MV-CL16K5-110F2M | 16K, XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL16K5-40F2C-PRO | 16K, XoFLink, Color | $1,919.00 | 5 in stock | View |
| MV-CL08B-10KF1M(V2.0) | XoFLink, Mono | $1,919.00 | 2 in stock | View |
| MV-CL081-B0F2M | 8K, XoFLink, Mono | $2,679.00 quote | 3 in stock | View |
