Line scan cameras

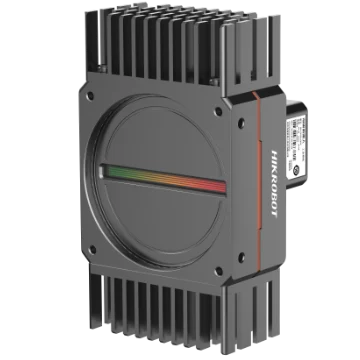

Hikrobot MV-CL162-91F2M (V2.0) 16k 3.5μm mono 2-line, XoF dual fiber port
Model MV-CL162-91F2M (V2.0)
Hikrobot MV-CL162-91F2M. Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment Dual XoF fiber ports for 20G high-bandwidth transmission
Datasheet (PDF, Chinese) - MV-CL162-91F2M (V2.0)User manual (PDF, Chinese) - MV-CL162-91F2M (V2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-CL162-91F2M (V2.0)
Features
- Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment
- Dual XoF fiber ports for 20G high-bandwidth transmission
- Flexible exposure and acquisition modes; 2-TDI imaging mode with line rate up to 120 kHz
- Bidirectional configurable I/O: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
Specifications
| Model | MV-CL162-91F2M (V2.0) |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 3.5 μm |
| Resolution | 16384 × 2 |
| Image mode | 1-Line supported, 2-TDI |
| Max. line rate | 1-Link mode: 73.2 kHz (1-Line), 60 kHz(2-TDI); 2-Link mode: 120 kHz (1-Line), 60 kHz(2-TDI) |
| Transmission mode | 1Link, 2Link |
| Dynamic range | 62 dB |
| SNR | 39.2 dB |
| Gain | 1.0× |
| Exposure time | 3 μs ~ 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber port |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 12~24 VDC |
| Power consumption | 10.6 W@24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 57.4 mm |
| Weight | F-mount with fan: approx. 600 g (1.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Cooling mode | Natural cooling |
| Client software | MVS |
| Operating system | Windows XP/7/10/11 32/64bits |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.94 kg |
