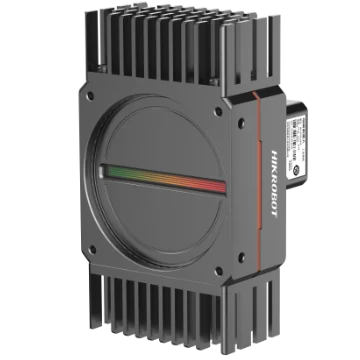

Hikrobot MV-8KF2C-CR 8192-pixel XoF fiber-interface color industrial line scan camera

Name: Hikrobot MV-8KF2C-CR 8192-pixel XoF fiber-interface color industrial line scan camera
Brand: Hikrobot
SKU: MV-8KF2C-CR

Model MV-8KF2C-CR

Hikrobot MV-8KF2C-CR 8192-pixel XoF fiber-interface color industrial line scan camera. Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment RGB true-color imaging with flexible exposure and acquisition modes

Datasheet (PDF, Chinese) - MV-8KF2C-CR

Features

Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment
RGB true-color imaging with flexible exposure and acquisition modes
Dual-channel XoF fiber ports for high-bandwidth transmission, line rates up to 66.6 kHz
Bidirectional configurable I/O wiring: inputs and outputs can be assigned flexibly
Compact design with mounting holes on front and side panels for flexible installation

Specifications

Model	MV-8KF2C-CR
Brand	Hikrobot
Sensor type	CMOS
Pixel size	7 μm
Resolution	8192×3
Image mode	Supports 1-Line
Max. line rate	66.6 kHz
Dynamic range	63.4 dB
SNR	40.8 dB
Gain	1.0 ×
Exposure time	3 μs ~ 10 ms
Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
Mono/color	Color
Pixel format	Mono 8/12, RGB8, BGR8
Binning	1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Data interface	2LC fiber port
Digital I/O	12-pin P10 connector provides power and I/O: 4 configurable I/O (Line 0/1/3/4), Single-ended/differential supported
Power supply	12~24 VDC
Power consumption	14 W@24 VDC
Lens mount	M72*0.75, Flange focal distance 12 mm; Can be adapted to F-mount lenses via adapter ring
Dimension	132 mm × 76 mm × 57.4 mm
Weight	Approx. 600 g
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Client software	MVS
Operating system	Windows XP/7/10 32/64bits
Compatibility	XoFLink, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.94 kg
