Hikrobot MV-CL16K5-110F2M 16k5μm, 4-line mono, 4TDI
Model MV-CL16K5-110F2M

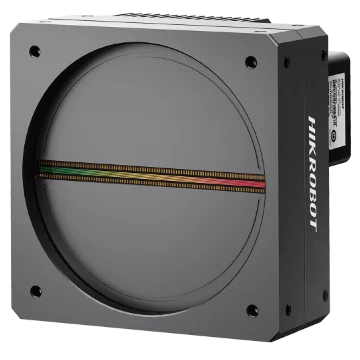

Hikrobot MV-CL16K5-110F2M 16k5μm, 4-line mono, 4TDI. Rich ISP image processing, including manual Gamma correction, flat-field correction, LUT and black level Single-line and TDI imaging modes with flexible exposure and acquisition
Datasheet (PDF, Chinese) - MV-CL16K5-110F2MUser manual (PDF, Chinese) - MV-CL16K5-110F2MCAD: 3D STEP + 2D DXF (ZIP) - MV-CL16K5-110F2M
Features
- Rich ISP image processing, including manual Gamma correction, flat-field correction, LUT and black level
- Single-line and TDI imaging modes with flexible exposure and acquisition
- Dual 10G fiber ports with XoFLink protocol for high bandwidth and reliable acquisition
- Compact design with mounting holes on multiple sides for flexible installation
Specifications
| Model | MV-CL16K5-110F2M |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 5 μm × 5 μm |
| Resolution | 16384 × 4 |
| Image mode | 1-Line, 2-TDI, 3-TDI, 4-TDI |
| Max. line rate | 110 kHz(1-Line)@Mono 8/10, 98.6 kHz(1-Line)@Mono 12; 88 kHz(2-TDI)@ Mono 8/10/12; 67 kHz(3-TDI)@ Mono 8/10/12; 55 kHz(4-TDI)@ Mono 8/10/12 |
| Transmission mode | 1Link, 2Link |
| Dynamic range | 62.5 dB |
| SNR | 40.8 dB |
| Gain | 1.0×, 2.0× |
| Exposure time | 3 μs ~ 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber port |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 15.8 W@24 VDC |
| Lens mount | M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 99 mm × 99 mm × 81.7 mm |
| Weight | Approx. 870 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.32 kg |
