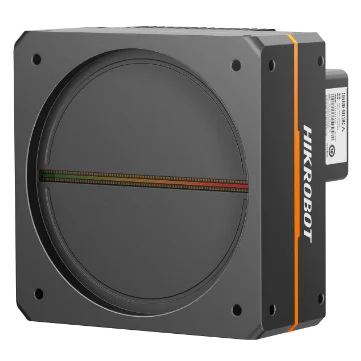

Hikrobot MV-CL166-91F2C 16k 5μm, XoF (2 SFP+) linescan camera, RGB/4TDI
Model MV-CL166-91F2C
Hikrobot MV-CL166-91F2C 16k 5μm, XoF. Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc. Supports RGB true color, multiple exposure and acquisition methods.
Features
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc.
- Supports RGB true color, multiple exposure and acquisition methods.
- Supports image mode of 1-line, 2-TDI, 3-TDI, and 4-TDI.
- Supports transmission protocol of XoFLink with max. line rate of 47.3 kHz.
- Adopts bi-directional configurable I/O hardware design.
- Compact design and flexible installation.
Specifications
| Model | MV-CL166-91F2C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 5 μm × 5 μm |
| Resolution | 16384 × 12 |
| Image mode | Supports 1-Line, 2-TDI, 3-TDI, 4-TDI |
| Max. line rate | 47.3 kHz (1-Line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI) |
| Dynamic range | 69.3 dB |
| SNR | 41.4 dB |
| Gain | 1.0 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono | Color |
| Pixel format | RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power supply | 24 VDC |
| Power consumption | Typ. 22.5 W @ 24 VDC |
| Lens mount | M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3") |
| Weight | Approx. 923 g (2.0 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.39 kg |
