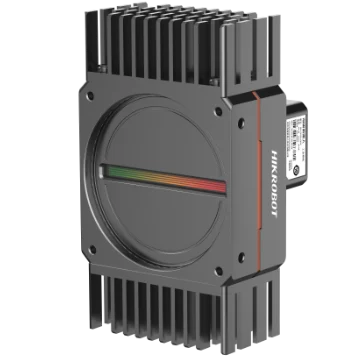

Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color
Model MV-CL083-91F2C(2.0)
Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color. Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc. Provides 20G fiber port to transmit data with max. line rate of 66.6 kHz.
Datasheet (PDF) - MV-CL083-91F2C(2.0)User manual (PDF) - MV-CL083-91F2C(2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-CL083-91F2C(2.0)
Features
- Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- Provides 20G fiber port to transmit data with max. line rate of 66.6 kHz.
- Supports RGB true color, multiple exposure and acquisition methods.
- Adopts bi-directional configurable I/O hardware design.
- Compact design and flexible installation.
Specifications
| Model | MV-CL083-91F2C(2.0) |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 × 3 |
| Image mode | Supports 1-Line |
| Max. line rate | 66.6 kHz |
| Dynamic range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure time | 3 μs to 10 ms |
| Mono/color | Color |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel format | Mono 8/12, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 14 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Self-developed protocol, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.94 kg |
