Line scan cameras
Hikrobot MV-CL16K5-40F2C-PRO 16k5μm, 12-line true color, 4TDI, 4-light time-division
Model MV-CL16K5-40F2C-PRO

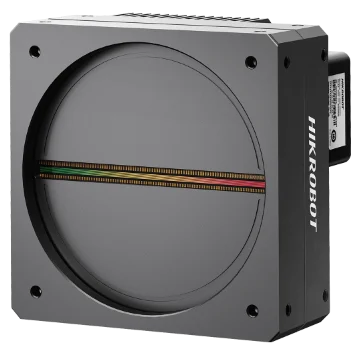

Hikrobot MV-CL16K5-40F2C-PRO 16k5μm, 12-line true color, 4TDI, 4-light time-division. Rich ISP image processing, including manual Gamma correction, flat-field correction and color correction RGB true-color imaging with flexible exposure and acquisition modes; single-line/2-TDI/4-TDI imaging
Datasheet (PDF, Chinese) - MV-CL16K5-40F2C-PROUser manual (PDF, Chinese) - MV-CL16K5-40F2C-PROCAD: 3D STEP + 2D DXF (ZIP) - MV-CL16K5-40F2C-PRO
Features
- Rich ISP image processing, including manual Gamma correction, flat-field correction and color correction
- RGB true-color imaging with flexible exposure and acquisition modes; single-line/2-TDI/4-TDI imaging
- Dual XoFLink fiber ports for high-bandwidth transmission; base line rate up to 40 kHz
- Matched frame-grabber transmission solution combining high-speed transfer with flexible image/light-linked acquisition
- Compact design with mounting holes on multiple sides for flexible installation
Specifications
| Model | MV-CL16K5-40F2C-PRO |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 5 μm × 5 μm |
| Resolution | 16384 × 12 |
| Image mode | 1-Line supported, 2-TDI, 4-TDI, 4 exposure polling groups supported |
| Max. line rate | 40 kHz |
| Transmission mode | 1Link, 2Link |
| Dynamic range | 62.6 dB |
| SNR | 39.3 dB |
| Gain | 1.0×, 1.3×, 2.0×, 4.0× |
| Exposure time | 3 μs ~ 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure |
| Mono/color | Color |
| Pixel format | RGB 8, BGR 8, Mono 8/10/12, Bayer RG 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger |
| Data interface | 2LC fiber port |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 24 VDC |
| Power consumption | 26.2 W@24 VDC |
| Lens mount | M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 99 mm × 99 mm × 81.7 mm |
| Weight | Approx. 870 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.32 kg |
