Line scan cameras · 19 models · from $639.00

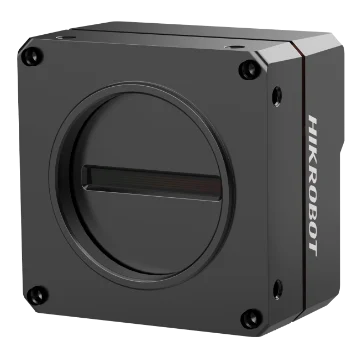

CL Series GigE Line Scan Cameras
The CL Series GigE Line Scan Cameras is a range of 19 line scan cameras from Hikrobot, from $639.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | GigE, Mono, 2K, GigE, Color, 2K, GigE, Mono, 4K, 2.5GigE, Color, 4K, 2.5GigE, Mono, 4K, GigE, Color, 4K, GigE, Mono, 8K, 2.5GigE, Color, 8K, 2.5GigE, Mono, 8K, GigE, Color, 8K, GigE, Mono |
|---|---|
| Interface | 2.5GigE, GigE |
| Line length | 2K, 4K, 8K |
| Colour | Color, Mono |
| Pixel size | 7 μm, 14 μm |
| Image circle | 14 mm, 29 mm, 57 mm |
| Lens mount | M42, M72 |
Features
- Single-line and TDI imaging
- Rich ISP processing, including Gamma correction, flat-field correction, gain adjustment and more
- Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Compatible with GigE Vision V2.0 and the GenICam standard
- Supports TDI and image high-bandwidth function.
- Supports Gamma correction, FFC correction, LUT, black level, etc.
- Adopts bi-directional I/O and flexible configuration for input/output signals.
All 19 models in the CL Series GigE Line Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| XAL024-4KGM | GigE, Mono | $639.00 | 2 in stock | View |
| MV-CL024-91GM | 2K, GigE, Mono | $1,209.00 | 4 in stock | View |
| MV-CL024-91GC | 2K, GigE, Color | $1,209.00 | 5 in stock | View |
| MV-CL042-91GM-PL | 4K, GigE, Mono | $1,329.00 | 3 in stock | View |
| MV-CL042-91GC-PL | 4K, GigE, Color | $1,329.00 | 2 in stock | View |
| MV-CL022-91GM | 2K, GigE, Mono | $1,459.00 | 2 in stock | View |
| MV-CL022-91GC | 2K, GigE, Color | $1,459.00 | 5 in stock | View |
| MV-CL042-91GM | 4K, GigE, Mono | $1,459.00 | 2 in stock | View |
| MV-CL042-91GC | 4K, GigE, Color | $1,459.00 | 5 in stock | View |
| MV-CL042-91GC-V2 | 4K, GigE, Color | $1,459.00 | 2 in stock | View |
| MV-CL042-91GM-V2 | 4K, GigE, Mono | $1,459.00 | 4 in stock | View |
| MV-CL043-A1GM-V2 | 4K, GigE, Mono | $1,499.00 | 5 in stock | View |
| MV-CL043-A1GC | 4K, GigE, Color | $1,499.00 | 2 in stock | View |
| MV-CL082-92GM(V2.0) | 8K, GigE, Mono | $1,499.00 | 2 in stock | View |
| MV-CL083-92GC(V2.0) | 8K, GigE, Color | $1,499.00 | 2 in stock | View |
| MV-CL044-91NM | 4K, 2.5GigE, Mono | $1,919.00 | 2 in stock | View |
| MV-CL044-91NC | 4K, 2.5GigE, Color | $1,919.00 | 4 in stock | View |
| MV-CL084-B1NM | 8K, 2.5GigE, Mono | $2,679.00 quote | 3 in stock | View |
| MV-CL084-B1NC | 8K, 2.5GigE, Color | $2,679.00 quote | 3 in stock | View |
