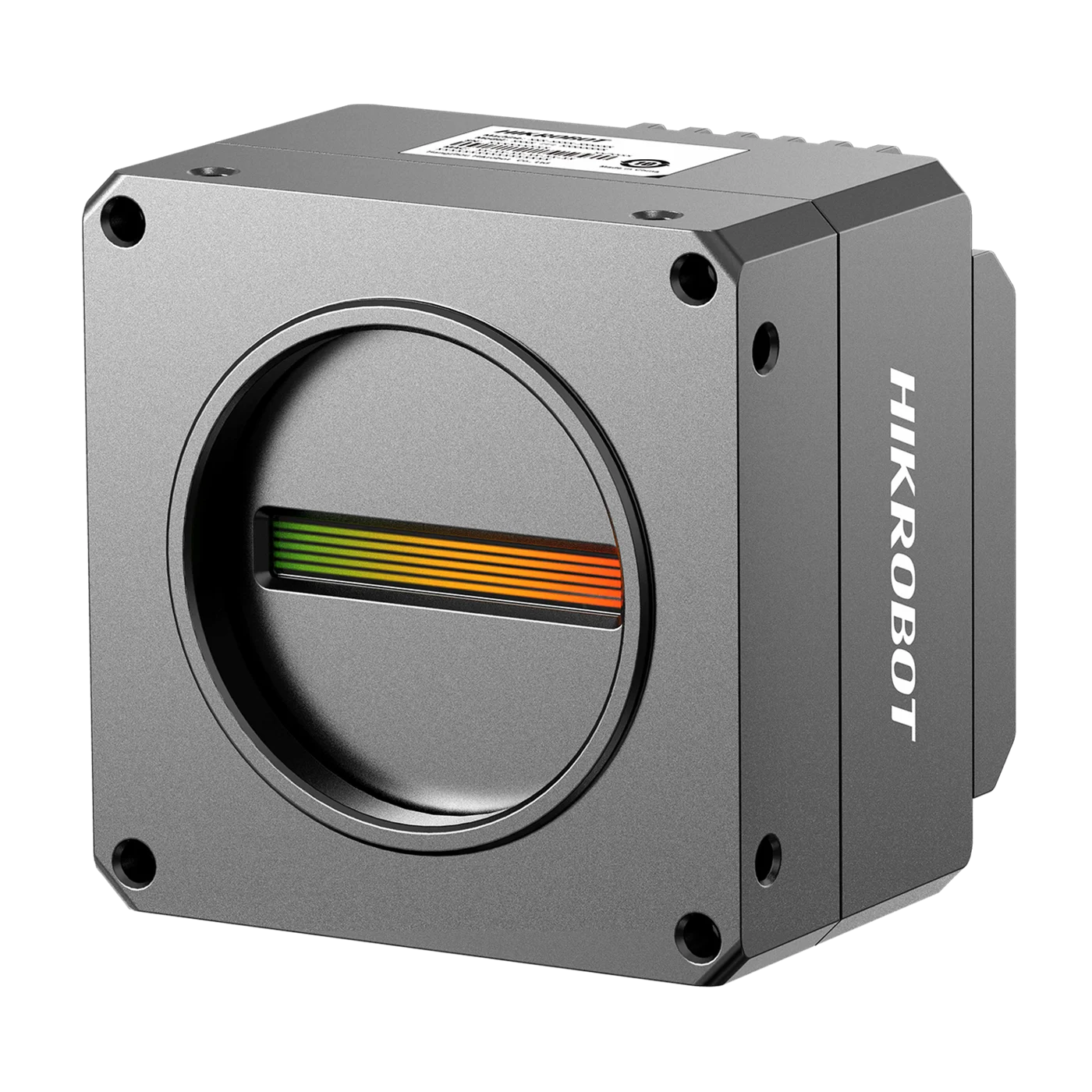

Hikrobot MV-CL044-91NC 4k 7μm, 2.5G, color
Model MV-CL044-91NC
Hikrobot MV-CL044-91NC 4k 7μm, 2.5G, color. Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 100 kHz. Supports RGB true color image output.
Datasheet (PDF) - MV-CL044-91NCUser manual (PDF) - MV-CL044-91NCCAD: 3D STEP + 2D DXF (ZIP) - MV-CL044-91NC
Features
- Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 100 kHz.
- Supports RGB true color image output.
- Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
Specifications
| Model | MV-CL044-91NC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 4096 ×3 |
| Image mode | Supports 1-Line |
| Max. line rate | Full resolution: 75.3 kHz @ Mono 8/Bayer RG 8, 25.1 kHz @ RGB 8/BGR 8, 37.7 kHz @ Bayer RG 10; Line rate after ROI: Max. 100 kHz (3080 P and below) |
| Dynamic range | 61.3 dB |
| SNR | 40.3 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure time | 1 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono | Color |
| Pixel format | RGB 8, BGR 8; Bayer RG 8/10; Mono 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Not supported |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal |
| Power supply | 12 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 7.2 W @ 12 VDC |
| Lens mount | M42*1.0, flange back length 12 mm; Connecting to F-mount, C-mount, and other lenses via adapter ring |
| Dimension | 62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8") |
| Weight | Approx. 260 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.46 kg |
