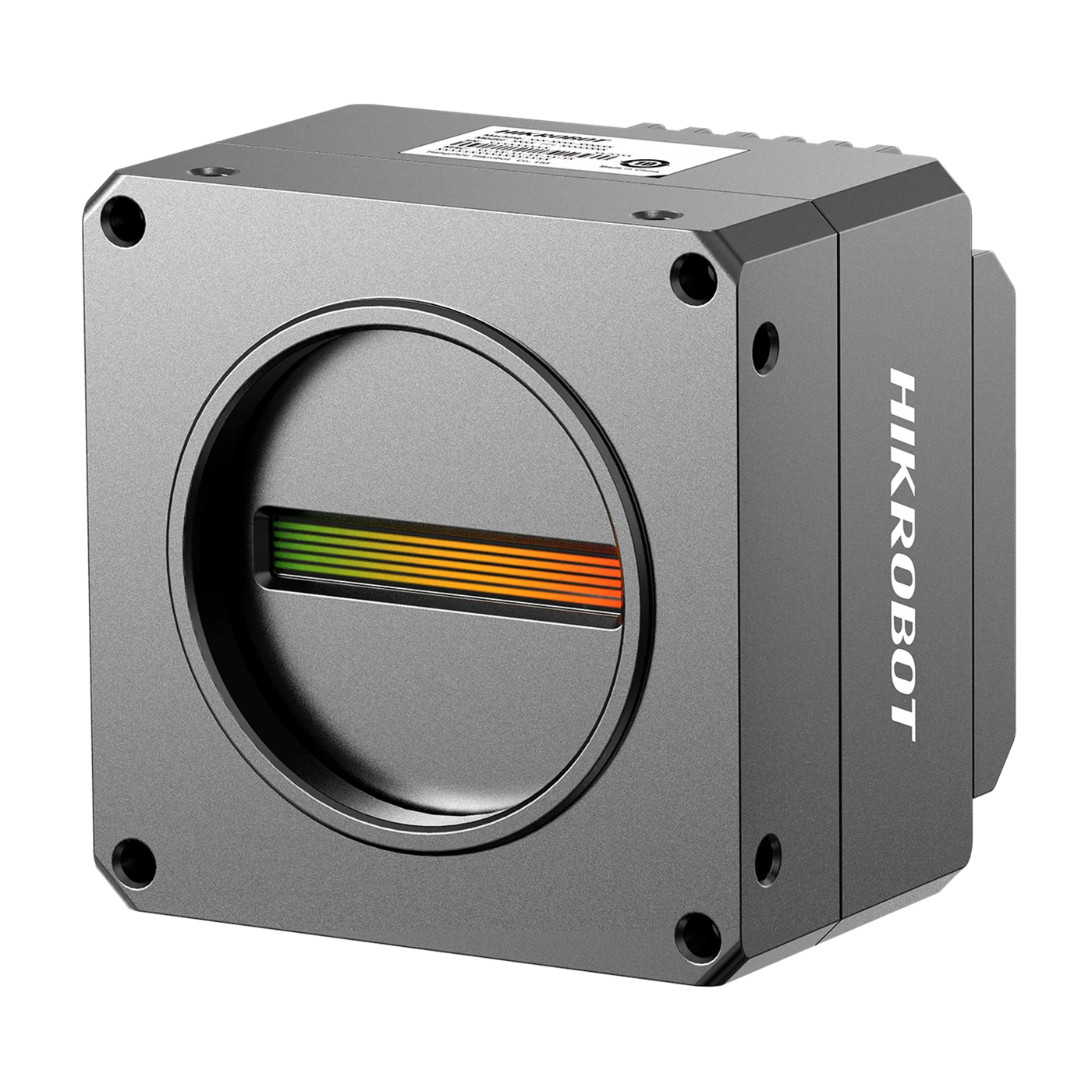

Hikrobot MV-CL044-91NM 4k 7μm, 2.5G, mono
Model MV-CL044-91NM
Hikrobot MV-CL044-91NM 4k 7μm, 2.5G, mono. Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 160 kHz. Supports image modes of 1-Line, 2-TDI, and 4-TDI.
Datasheet (PDF) - MV-CL044-91NMUser manual (PDF) - MV-CL044-91NMCAD: 3D STEP + 2D DXF (ZIP) - MV-CL044-91NM
Features
- Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 160 kHz.
- Supports image modes of 1-Line, 2-TDI, and 4-TDI.
- Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
Specifications
| Model | MV-CL044-91NM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 4096 × 4 |
| Image mode | Supports 1-Line, 2-TDI, 4-TDI |
| Max. line rate | Full resolution: 75.3 kHz @ Mono 8 (1-Line, 2-TDI), 40 kHz @ Mono 8 (4-TDI), 37.6 kHz @ Mono 10/12 (1-Line, 2-TDI, 4-TDI); Line rate after ROI: Max. 160 kHz @ Mono 8 & 1-Line (1928 P and below) |
| Dynamic range | 60.9 dB |
| SNR | 40.5 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure time | 1 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal |
| Power supply | 12 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 7.3 W @ 12 VDC |
| Lens mount | M42*1.0, flange back length 12 mm; Connecting to F-mount, C-mount, and other lenses via adapter ring |
| Dimension | 62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8") |
| Weight | Approx. 260 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.46 kg |
