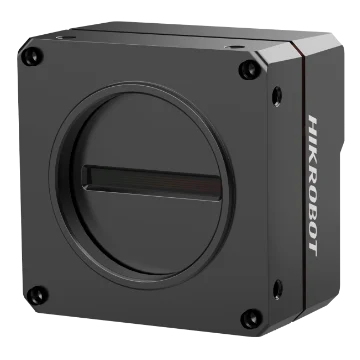

Hikrobot XAL024-4KGM 4096-pixel Gigabit Ethernet industrial line-scan camera

Name: Hikrobot XAL024-4KGM 4096-pixel Gigabit Ethernet industrial line-scan camera
Brand: Hikrobot
SKU: XAL024-4KGM

Model XAL024-4KGM

Hikrobot XAL024-4KGM 4096-pixel Gigabit Ethernet industrial line-scan camera. Single-line and TDI imaging Rich ISP processing, including Gamma correction, flat-field correction, gain adjustment and more

Datasheet (PDF, Chinese) - XAL024-4KGM

Features

Single-line and TDI imaging
Rich ISP processing, including Gamma correction, flat-field correction, gain adjustment and more
Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
Compact design with mounting holes on front and side panels for flexible installation
Compatible with GigE Vision V2.0 and the GenICam standard

Specifications

Model	XAL024-4KGM
Brand	Hikrobot
Sensor type	CMOS
Pixel size	7 μm × 7 μm
Resolution	4096 × 3
Image mode	Supports 1 Line / 2 TDI / 3 TDI
Max. line rate	28 kHz @ Mono 8, 14 kHz @ Mono 10/12
Dynamic range	66.2 dB
SNR	39 dB
Gain	Supports 1.0 ×, 2.0 ×, 4.0 ×
Exposure time	1 μs~10 ms
Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply	12 ~ 24 VDC
Power consumption	3.9 W@12 VDC
Lens mount	M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter
Dimension	62 mm × 62 mm × 41 mm
Weight	Approx. 280 g (0.6 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.49 kg
