Line scan cameras
Hikrobot MV-CL084-B1NC 8K 7 μm color, 2.5G connector
Model MV-CL084-B1NC

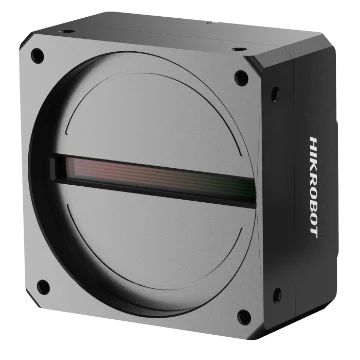

Hikrobot MV-CL084-B1NC 8K 7 μm color, 2.5G connector. 2.5GigE data interface: base line rate up to 37.6 kHz, instantaneous peak up to 42 kHz RGB true-color imaging for better color reproduction
Datasheet (PDF, Chinese) - MV-CL084-B1NCUser manual (PDF, Chinese) - MV-CL084-B1NCCAD: 3D STEP + 2D DXF (ZIP) - MV-CL084-B1NC
Features
- 2.5GigE data interface: base line rate up to 37.6 kHz, instantaneous peak up to 42 kHz
- RGB true-color imaging for better color reproduction
- Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment
- Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on multiple sides for flexible installation
- Compatible with GigE Vision V2.0 and the GenICam standard
Specifications
| Model | MV-CL084-B1NC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 ×3 |
| Image mode | Supports 1-Line |
| Max. line rate | Full resolution: 37.6 kHz @ Mono 8/Bayer RG 8, 12.5 kHz@RGB 8/BGR 8, 18.8 kHz@Mono10/ Mono12/Bayer RG 10/ Bayer RG 12; With ROI line-rate boost: up to 42 kHz (at 2448 resolution or below); Instantaneous peak: 42 kHz @ Mono 8/Bayer RG 8 |
| Dynamic range | 63.9 dB |
| SNR | 41.6 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure time | 3 μs ~ 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Color |
| Pixel format | RGB8, BGR8; Bayer RG 8/10/12; Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Not supported |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal |
| Power supply | 12 ~24 VDC |
| Power consumption | 8.6 W@24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter |
| Dimension | 76 mm × 76 mm × 41.9 mm |
| Weight | Approx. 350 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10/11 32/64bits, Linux 32/64bits |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.59 kg |
