Line scan cameras · 3 models · from $1,439.00

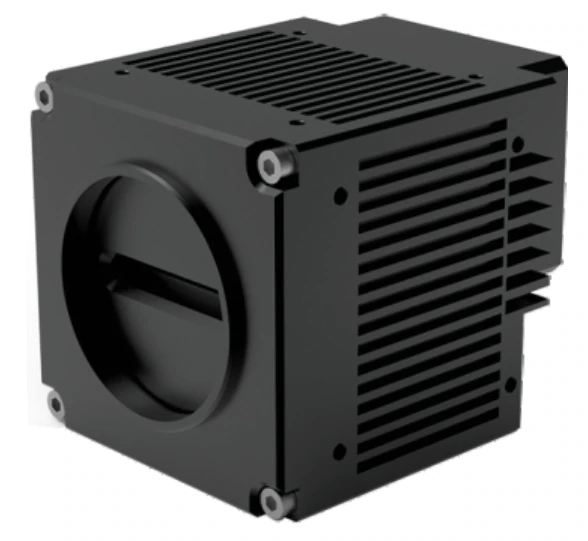

10 GigE line scan camera, 256 MT (TDI) series
The 10 GigE line scan camera, 256 MT (TDI) series is a range of 3 line scan cameras from LumaSpec Vision, from $1,439.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4K, 10GigE, Mono, 8K, 10GigE, Mono, 16K, 10GigE, Mono |
|---|---|
| Interface | 10GigE |
| Shutter | Global |
| Colour | Mono |
| Lens mount | M42, M58, M90 |
| Line length | 4K, 8K, 16K |
| Sensor format | 4/3" - APS-C, APS-H / Full frame, Medium / large |
Features
- 5um pixel, 10 GigE interface
- 256-stage TDI, reducing the demand on the light source
- Sensor line frequency up to 250k/200k (sensor output pixel width 10bits/12bits)
- Supports 256-line area array focusing mode
- Gain and Offset programmable settings, flat-field correction supported
- Encoder synchronous trigger, photoelectric sensor and encoder combination trigger modes
All 3 models in the 10 GigE line scan camera, 256 MT (TDI) series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-MV-L042MT-10G | 4K, 10GigE, Mono | $1,439.00 | 2 in stock | View |
| LS-MV-L082MT-10G | 8K, 10GigE, Mono | $1,439.00 | 5 in stock | View |
| LS-MV-L162MT-10G | 16K, 10GigE, Mono | $1,439.00 | 4 in stock | View |
