Line scan cameras · 6 models · from $1,099.00

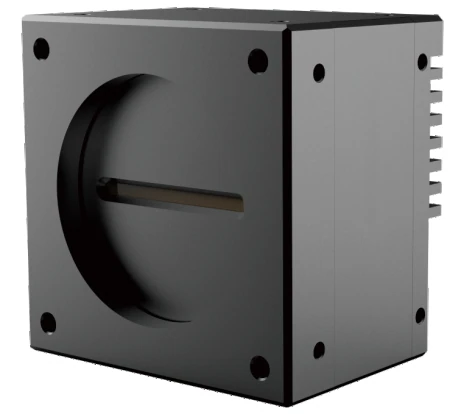

GigE line scan camera (LS-MV-L / LS-MV-LM ...-GE)
The GigE line scan camera (LS-MV-L / LS-MV-LM ...-GE) is a range of 6 line scan cameras from LumaSpec Vision, from $1,099.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4K, GigE, 4K, GigE, Color, 4K, GigE, Mono, 8K, GigE, Mono |
|---|---|
| Interface | GigE |
| Shutter | Global |
| Colour | Color, Mono |
| Lens mount | M42, M72 |
| Line length | 4K, 8K |
| Sensor format | 4/3" - APS-C, Medium / large |
Features
- Line rate up to 48K, freely set in software; color line scan camera supports RGB three-line true color output
- Supports sensor hardware 2-line SUM, multiplying brightness and reducing light source requirements
- Multiple trigger modes such as encoder synchronous triggering and photoelectric sensor + encoder combined synchronous triggering
- Supports frequency division and frequency doubling of the encoder signal to match the motion platform accurately
- Hardware ISP supports gamma, contrast, lens shading correction and more
- Gigabit Ethernet port, maximum transmission distance 100 meters
- Software free configuration.
- Hardware ISP supports Gamma,contrast,lens shadow correction and more.
Typical uses
- Logistics
- Metallurgy
- Food
- Pharmaceutical
- Material sorting
All 6 models in the GigE line scan camera (LS-MV-L / LS-MV-LM ...-GE)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-MV-L041M-GE | 4K, GigE, Mono | $1,099.00 | 3 in stock | View | |
| LS-MV-LM041M-GE | 4K, GigE, Mono | $1,099.00 | 5 in stock | View | |
| LS-MV-LM044C-GE | 4K, GigE, Color | $1,099.00 | 2 in stock | View | |
| LS-MV-LM044M-GE | 4K, GigE, Mono | 6 W | $1,099.00 | 2 in stock | View |
| LS-MV-L021M-GE | 4K, GigE | $1,099.00 | 3 in stock | View | |
| LS-MV-L083BC-GE | 8K, GigE, Mono | $1,129.00 | 5 in stock | View |
