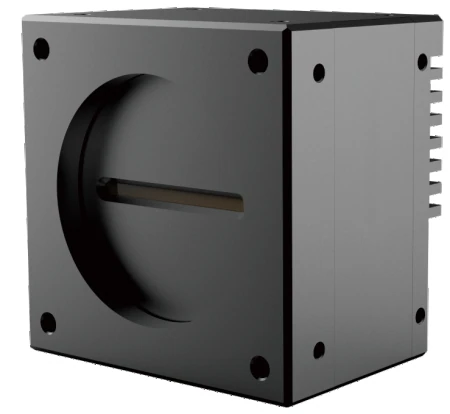

GigE line scan camera (MV-L / MV-LM ...-GE), 4K, GigE, Mono (LS-MV-LM044M-GE)
Model LS-MV-LM044M-GE
Industrial line scan cameras for large-format inspection and high-speed assembly line inspection, using domestic chips, GigE interface and 4K high resolution with up to 28KHz line frequency, integrating a variety of ISP image algorithms and supporting external trigger. LS-MV-L041M-GE and MV-L044C/M-GE are economical products with high performance and low cost.
Features
- Line rate up to 48K, freely set in software; color line scan camera supports RGB three-line true color output
- Supports sensor hardware 2-line SUM, multiplying brightness and reducing light source requirements
- Multiple trigger modes such as encoder synchronous triggering and photoelectric sensor + encoder combined synchronous triggering
- Supports frequency division and frequency doubling of the encoder signal to match the motion platform accurately
- Hardware ISP supports gamma, contrast, lens shading correction and more
- Gigabit Ethernet port, maximum transmission distance 100 meters
Specifications
| Model | LS-MV-LM044M-GE |
|---|---|
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Data interface | 10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G (as printed in the GigE line scan general table) |
| Vision standard | GigE Vision V1.2, GenICam |
| Filter | Mono cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut-off filter as standard |
| Working temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Effective pixel | 4096×8 |
| Sensor type | CMOS |
| Shutter mode | Global |
| Pixel size | 7μm |
| Line frequency | 27.5k |
| Target size | 28.6mm |
| TDI | 4 |
| Minimum exposure | 0.003ms |
| Color | Mono |
| Sensor size | 28.6mm (photosensitive region) |
| Lens mount | M42×1.0, optical back focus 12 mm |
| Exposure time range (ms) | 0.003~5 |
| Dimensions | 59.5×59.5×32.35mm (without lens mount and rear shell interface) |
| Data bit width | 8bits (camera output to the user data width) |
| Transmission mode | GigE Vision V1.2, GenICam |
| Transmission interface | Gigabit network |
| Power | <6W |
| Power supply | 9~24V |
| Weight | <500g |
| Resolution | Mono: 4096×8 |
| Frame rate | Mono: 27.5K |
| Color (detail) | Mono |
| Data format | Mono: Mono 8bit |
| TDI (detail) | 4 |
| Mono / colour | Mono |
| Voltage | 9~24V |
Applications
- Logistics
- Metallurgy
- Food
- Pharmaceutical
- Material sorting
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the GigE line scan camera (MV-L / MV-LM ...-GE) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MV-L041M-GE | 4K, GigE, Mono | $1,349.00 | 3 in stock | View |
| LS-MV-LM041M-GE | 4K, GigE, Mono | $1,349.00 | 5 in stock | View |
| LS-MV-LM044C-GE | 4K, GigE, Color | $1,349.00 | 2 in stock | View |
| LS-MV-L083BC-GE | 8K, GigE, Mono | $1,899.00 | 5 in stock | View |
