Line scan cameras · 3 models · from $1,919.00

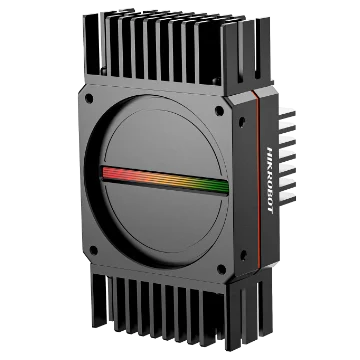

CL Series CoaXPress Line Scan Cameras
The CL Series CoaXPress Line Scan Cameras is a range of 3 line scan cameras from Hikrobot, from $1,919.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 8K, CoaXPress, Mono, 16K, CoaXPress, Mono |
|---|---|
| Interface | CoaXPress |
| Line length | 8K, 16K |
| Colour | Mono |
| Pixel size | 5 μm, 7 μm |
| Image circle | 41 mm, 57 mm, 82 mm |
| Lens mount | M72, F-mount |
Features
- Supports multi-light control, multi-exposure, TDI, etc.
- Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- Provides CXP-10 interfaces to transmit data.
- Supports multiple exposure and acquisition methods.
- Compact design and flexible installation.
- Flexible exposure and acquisition modes, including time-division strobe
- Rich ISP image processing, including Gamma correction, flat-field correction, LUT and black-level adjustment
- Bidirectional configurable I/O wiring: inputs and outputs can be assigned flexibly
All 3 models in the CL Series CoaXPress Line Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CL084-91Y2M(V2.0) | 8K, CoaXPress, Mono | $1,919.00 | 2 in stock | View |
| MV-CL161-B1Y4M | 16K, CoaXPress, Mono | $1,919.00 | 5 in stock | View |
| MV-CL08T5-500Y4M | 8K, CoaXPress, Mono | $1,919.00 | 5 in stock | View |
