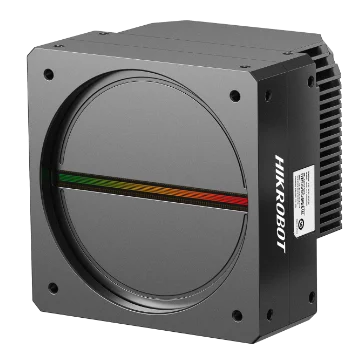

Hikrobot MV-CL161-B1Y4M 16K5μm, CXP 4link, Mono
Model MV-CL161-B1Y4M
Hikrobot MV-CL161-B1Y4M 16K5μm, CXP 4link, Mono. Flexible exposure and acquisition modes, including time-division strobe Rich ISP image processing, including Gamma correction, flat-field correction, LUT and black-level adjustment
Datasheet (PDF, Chinese) - MV-CL161-B1Y4MUser manual (PDF, Chinese) - MV-CL161-B1Y4MCAD: 3D STEP + 2D DXF (ZIP) - MV-CL161-B1Y4M
Features
- Flexible exposure and acquisition modes, including time-division strobe
- Rich ISP image processing, including Gamma correction, flat-field correction, LUT and black-level adjustment
- Bidirectional configurable I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on multiple sides
- CXP-12 interface for data transmission
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | MV-CL161-B1Y4M |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 5 μm × 5 μm |
| Resolution | 16384 × 1 |
| Image mode | 1-Line |
| Max. line rate | 200 kHz@Mono 8/10, 197.3 kHz@Mono 12 |
| Transmission mode | 1Link, 2Link, 4Link |
| Dynamic range | 61.3 dB |
| SNR | 38.8 dB |
| Gain | 1.0×, 2.0× |
| Exposure time | 3 μs ~ 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger |
| Data interface | CoaXPress-12 (Micro-BNC port) |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 12 ~ 24 VDC, CXP-0, CXP-1 and CXP-2 ports support PoCXP power |
| Power consumption | 16.3 W@24 VDC |
| Lens mount | M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 99 mm × 99 mm × 81.65 mm |
| Weight | Approx. 780 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.19 kg |
