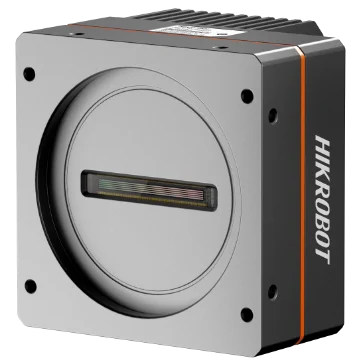

Hikrobot MV-CL08T5-500Y4M Line scan camera 8k 5μm, CXP-12 4link, Mono, 256TDI, 500khz
Model MV-CL08T5-500Y4M
Hikrobot MV-CL08T5-500Y4M Line scan camera 8k 5μm, CXP-12 4link, Mono, 256TDI, 500khz. 5 µm × 5 µm pixel, high-sensitivity BSI CMOS sensor 256-stage TDI imaging for improved sensitivity
Datasheet (PDF, Chinese) - MV-CL08T5-500Y4MUser manual (PDF, Chinese) - MV-CL08T5-500Y4MCAD: 3D STEP + 2D DXF (ZIP) - MV-CL08T5-500Y4M
Features
- 5 µm × 5 µm pixel, high-sensitivity BSI CMOS sensor
- 256-stage TDI imaging for improved sensitivity
- CXP-12 high-speed interface, line rate up to 500 kHz
- Area-scan and line-scan modes
- Rich ISP functions, including Gamma correction, flat-field correction and black-level adjustment
- Finned heat sink and multi-side mounting holes for flexible use in many applications
Specifications
| Model | MV-CL08T5-500Y4M |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 5 μm × 5 μm |
| Resolution | 8192 × 256 |
| Image mode | 64-TDI, 128-TDI, 192-TDI, 256-TDI |
| Max. line rate | 500 kHz @8bit, 469.9 khz@10bit, 391.6 kHz@12bit |
| Transmission mode | 1Link, 2Link, 4Link |
| Dynamic range | 65.9 dB |
| SNR | 41.6 dB |
| Gain | 1.0×, 2.0×, 4.0× |
| Exposure time | Area scan mode: 3 μs ~ 10 ms; Line scan mode: follows line rate |
| Exposure mode | Area scan mode: auto exposure supported, Manual exposure, One-touch exposure; Line scan mode: exposure follows line rate |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger |
| Data interface | CoaXPress-12 (Micro-BNC port) |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 12 ~ 24 VDC, CXP-0, CXP-1 and CXP-2 ports support PoCXP power |
| Power consumption | 20.2 W@24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 86 mm × 86 mm × 76.9 mm |
| Weight | Approx. 617 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Operating temperature -20 to 40°C, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.96 kg |
