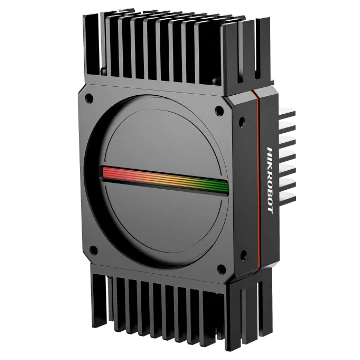

Hikrobot MV-CL084-91Y2M(V2.0) 8k 7μm, CXP-10 2link, mono
Model MV-CL084-91Y2M(V2.0)
Hikrobot MV-CL084-91Y2M(V2.0) 8k 7μm, CXP-10 2link, mono. Supports multi-light control, multi-exposure, TDI, etc. Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
Datasheet (PDF) - MV-CL084-91Y2M(V2.0)User manual (PDF) - MV-CL084-91Y2M(V2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-CL084-91Y2M(V2.0)
Features
- Supports multi-light control, multi-exposure, TDI, etc.
- Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- Provides CXP-10 interfaces to transmit data.
- Supports multiple exposure and acquisition methods.
- Compact design and flexible installation.
Specifications
| Model | MV-CL084-91Y2M(V2.0) |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 ×4 |
| Image mode | Supports multi-light control: 1/2/3/4 light(s); Supports 1-Line, 2-TDI, and 4-TDI |
| Max. line rate | 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI); 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI); 3-light mode: 34.6 kHz (1-Line); 4-light mode: 26 kHz (1-Line) |
| Dynamic range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | CXP-10 with two Micro-BNC interfaces |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| Power consumption | Typ. 15.5 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount lens via adapter ring |
| Dimension | 132 mm × 76 mm × 51.4 mm (5.2" × 3.0" × 2.0") |
| Weight | Approx. 520 g (1.1 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or other frame grabber softwares corresponding to CoaXPress protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.83 kg |
