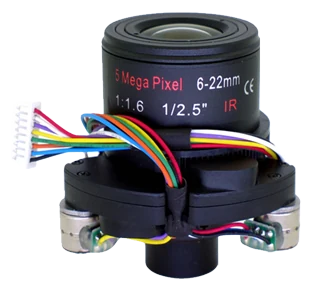

6-22 mm, 1/2.5", 5 MP, D14-mount Motorized Zoom Lens (LS-CTV-0085)
  • 6-22 mm, 1/2.5", 5 MP, D14-mount Motorized Zoom Lens (LS-CTV-0085)

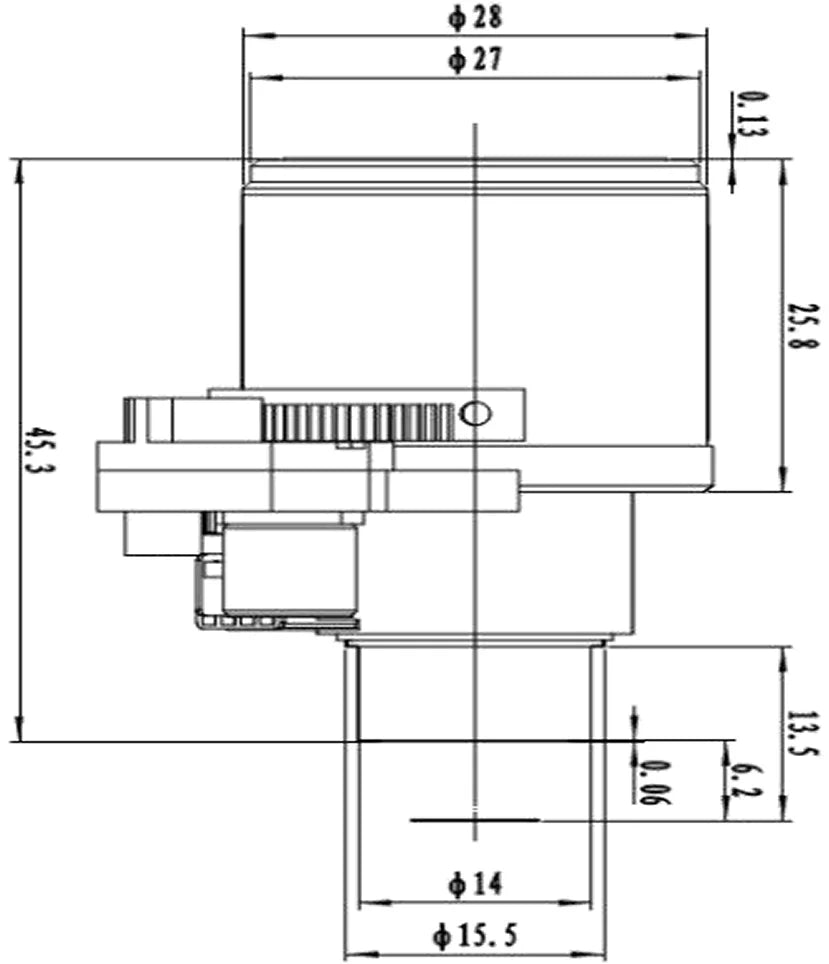

  • LS-CTV-0085 dimensions (mm)

CCTV lenses

6-22 mm, 1/2.5", 5 MP, D14-mount Motorized Zoom Lens (LS-CTV-0085)

Model LS-CTV-0085

  • Focal length6-22mm
  • MountD14
  • Sensor1/2.5"
  • Aperture1:1.6
  • Resolution5 Megapixel
$329.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6-22 mm, 1/2.5", 5 MP, D14-mount Motorized Zoom Lens (LS-CTV-0085)LS-CTV-0085

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6-22 mm, 1/2.5", 5 MP, D14-mount Motorized Zoom Lens. A 6-22 mm 1/2.5" motorized zoom lens in our S-mount (M12/M16/D14) motorized zoom range; At a glance: focal length 6-22mm; format 1/2.5"; resolution 5 Megapixel; aperture 1:1.6; mount D14.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0085
Format1/2.5"
IR correctedIR
IR correctionIR
T.T.L.61.5 mm

Optics

Focal length6-22mm
Aperture1:1.6
M.O.D.0.3 m

Sensor and imaging

Resolution5 Megapixel

Mechanical

Angle of view (1/2.5", diameter)58 x 46.4 x 35.8 deg
Angle of view (1/3", diameter)46.5 x 37.2 x 27.9 deg
Sizedia. 30 x 56.3 mm
MountD14
Weight200 g
Shipping weight (estimated)0.38 kg
