10-50 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0072)
  • 10-50 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0072)

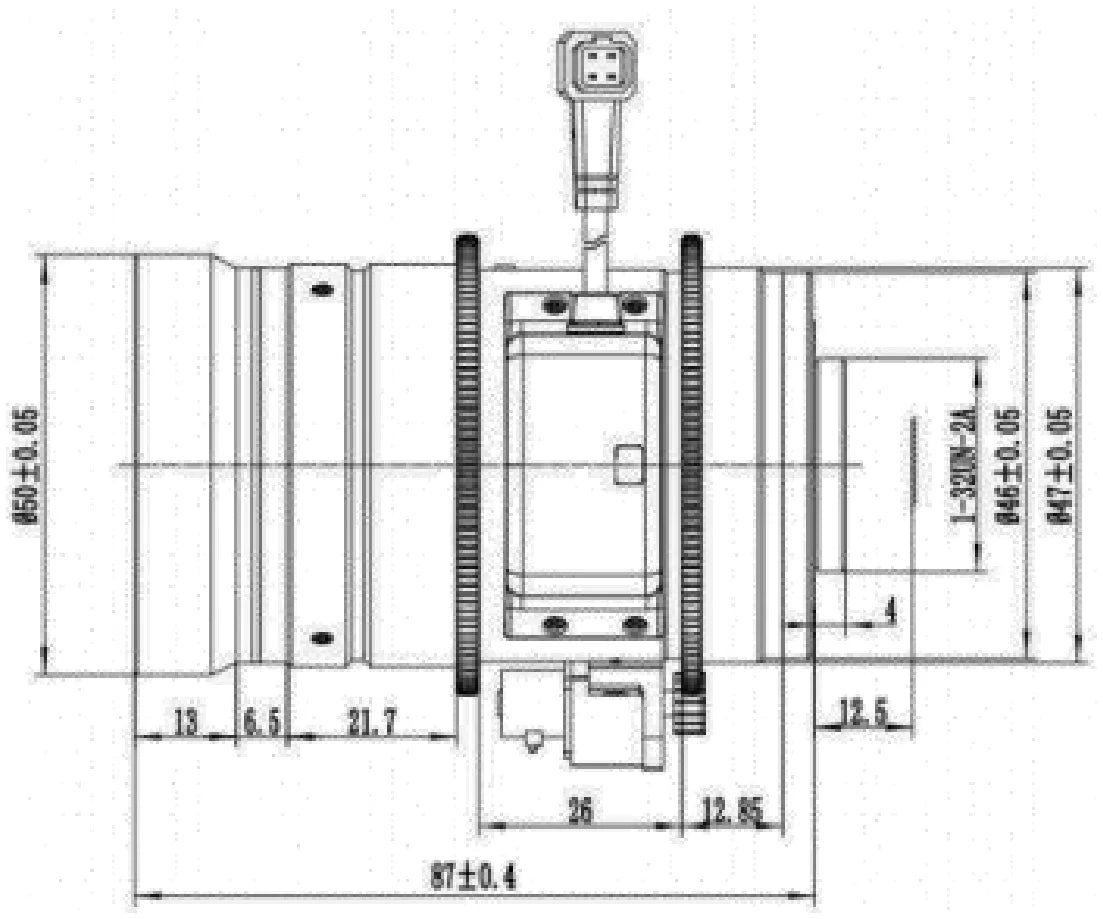

  • LS-CTV-0072 dimensions (mm)

CCTV lenses

10-50 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0072)

Model LS-CTV-0072

  • Focal length10-50mm
  • MountCS-mount
  • Sensor1/1.7"
  • ApertureF1.4 DC Iris ( P-iris optional )
  • ResolutionSupport 12 Megapixel
$339.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.47 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

10-50 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0072)LS-CTV-0072

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

10-50 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens. A 10-50 mm F1.4 motorized zoom lens for 1/1.7" cameras up to 12 megapixels, DC iris with P-iris optional, for highway, rail, industry and city surveillance. At a glance: focal length 10-50mm; format 1/1.7"; resolution Support 12 Megapixel; aperture F1.4 DC Iris ( P-iris optional ); mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0072
IR correctedIR
Format1/1.7"
Angle of view (1/1.7", DxHxV)47 x 37 x 27.2 deg
Angle of view (1/1.8" 16:9, DxHxV)44.2 x 38.1 x 21 deg
Angle of view (1/2", DxHxV)40 x 31.2 x 23.1 deg
CRA0.16°
Notes-30°~+70°
FeaturesCoating 400~900nm
IR correctionIR
Coating400~900nm

Optics

Focal length10-50mm
ApertureF1.4 DC Iris ( P-iris optional )
M.O.D.1.5m
Distortion-10.7%~0.07%
Back focal length>8.26mm
Mechanical back focal length>6.95mm
Back focal length (optical)>8.26mm
IrisDC

Sensor and imaging

ResolutionSupport 12 Megapixel

Mechanical

Sizedia. 50 x 87.4
MountCS
Weight265g
Shipping weight (estimated)0.47 kg
