CCTV lenses

10-40 mm, 1", 12 MP, C-mount Motorized Zoom Lens, 12 Megapixel (LS-CTV-0058)

Model LS-CTV-0058

Focal length10-40 mm
MountC-mount
Sensor1"
ApertureF1.6 P-iris (DC / 3 Motors optional)
Resolution12 Megapixel

$339.00

Ships in 2-3 weeks

0.88 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10-40 mm, 1", 12 MP, C-mount Motorized Zoom Lens. High resolution: 12 megapixel covering 4K, 1080P. Suitable F. length: 10-40mm making up short distance surveillance. Big aperture: F1.6 suitable for dark vision. At a glance: focal length 10-40 mm; format 1"; resolution 12 Megapixel; aperture F1.6 P-iris (DC / 3 Motors optional); mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0058
IR correction	IR (with non-uniform-thickness filter)
Format	1"
Angle of view (1", DxHxV)	68.5 x 54.6 x 41.5 deg
Angle of view (2/3", DxHxV)	48.2 x 38 x 23.7 deg
Angle of view (1/2", DxHxV)	35.7 x 27.9 x 24.9 deg
CRA	<5.8° (wide); <4.9° (Tele)
Notes	Operating temperature -20° to +60°

Optics

Focal length	10-40 mm
Aperture	F1.6 P-iris (DC / 3 Motors optional)
M.O.D.	2.5 m
Distortion	-8% to -4.8%
Back focal length	11.6 mm
Mechanical back focal length	10.97 mm
Iris options	P-iris, DC iris, 3 Motors Optional
Max. image circle	17.4 mm
Zoom / focus motors	stepping, 18 deg/step, rated 5 V DC, coil 30 ohm +/-7%, ratio 1:156, 8-pin P=2.5 connector
P-iris motor	DC 2.7-5 V, step angle 18 deg +/-3 deg/step, output 0.845 deg/step
Back focal length (optical)	11.6mm
Iris	P-IRIS

Sensor and imaging

Resolution	12 Megapixel

Environment and compliance

Operating temperature	-30 to +70 °C (motors)

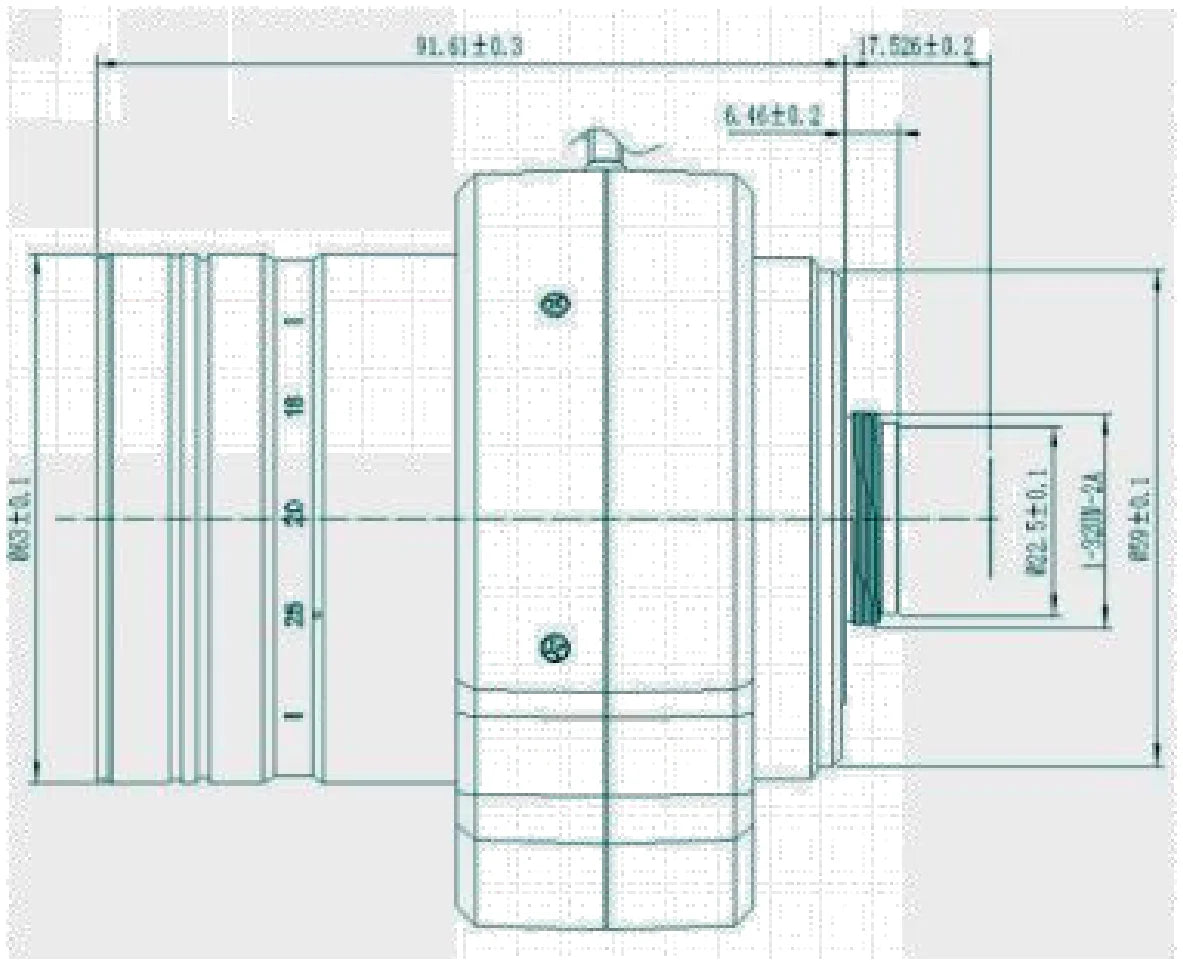

Mechanical

Size	dia. 66 x 98.07 mm
Mount	C
Weight	560 g
Shipping weight (estimated)	0.88 kg

Downloads

Datasheet (PDF)LS-CTV-0058 · 1005 KB

Features

High resolution: 12 megapixel covering 4K, 1080P
Suitable F. length: 10-40mm making up short distance surveillance.
Big aperture: F1.6 suitable for dark vision
Large format: 1" large format covering all 2/3",1/1.7",1/2"
Compact size: Compact small size lens for special application.
Optional Iris: P-iris & 3 motors, DC iris for option
4K 12 megapixel high resolution
Large 1" format

Applications

Highway
train
industry
power station
city surveillance
Surveillance
