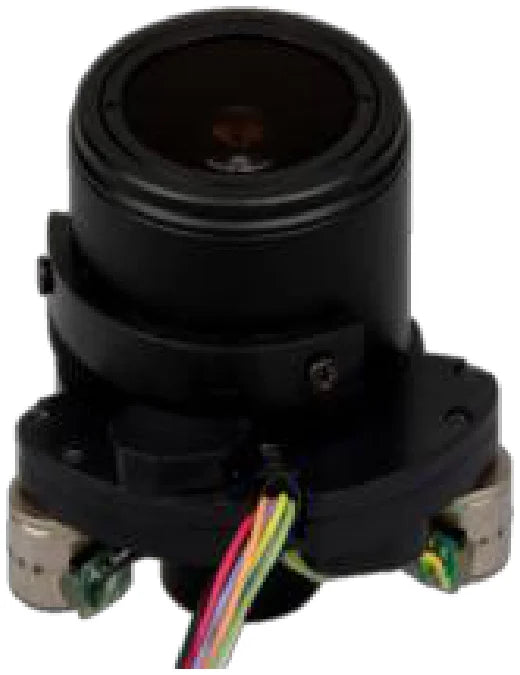

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Manual Iris (LS-CTV-0063)
  • 2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Manual Iris (LS-CTV-0063)

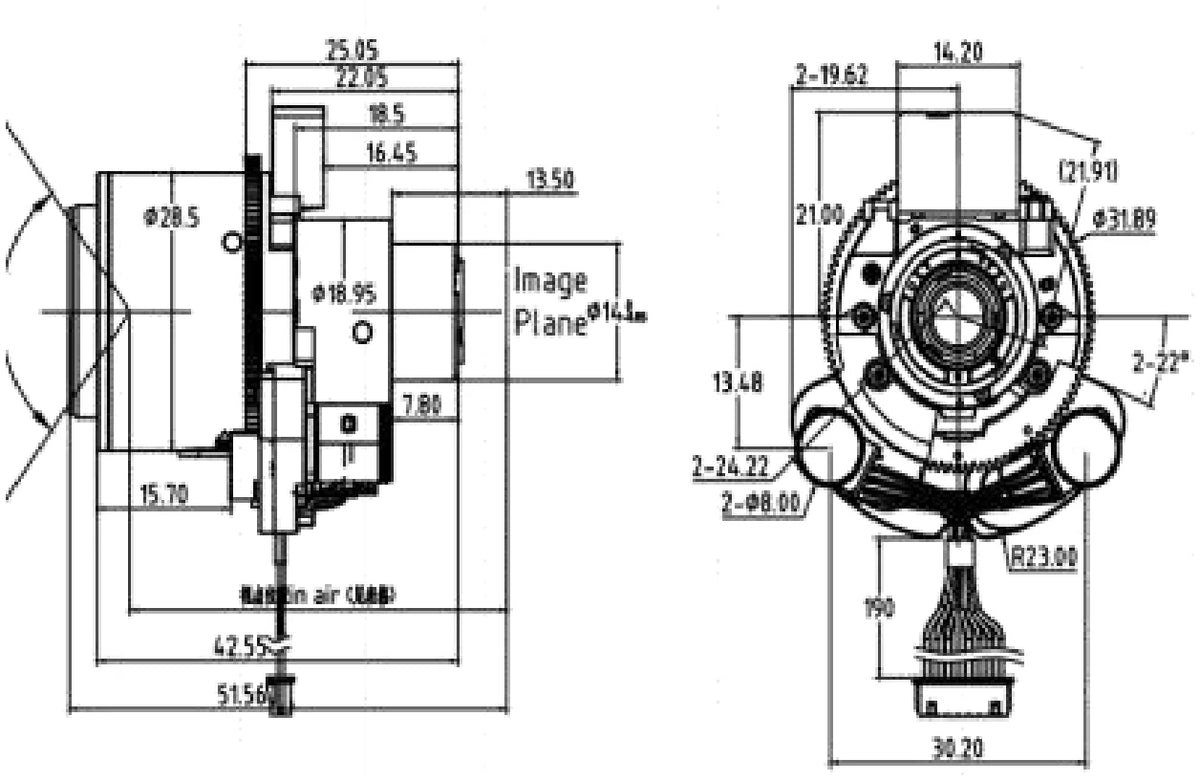

  • LS-CTV-0063 dimensions (mm)

CCTV lenses

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Manual Iris (LS-CTV-0063)

Model LS-CTV-0063

  • Focal length2.8-12mm
  • MountD14
  • Sensor1/2.7"
  • ApertureManual Iris
  • Resolution3.0 Megapixel (Pixel size 3μm)
$329.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.15 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Manual Iris (LS-CTV-0063)LS-CTV-0063

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens. 3.0 megapixel 2.8-12 mm motorized zoom lens for 1/2.7" sensors with a plug-in dia. 14 (D14) mount, manual iris and ICR function. At a glance: focal length 2.8-12mm; format 1/2.7" (Max image circle dia. 6.6mm); resolution 3.0 Megapixel (Pixel size 3μm); aperture type Manual Iris; mount dia. 14 (D14).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0063
IR correctionIR
Format1/2.7" (Max image circle dia. 6.6mm)
Angle of view (1/2.7", DxHxV)138 x 111 x 57 deg
Angle of view (1/3", DxHxV)120 x 89 x 64 deg

Optics

Focal length2.8-12mm
Aperture typeManual Iris
ApertureF1.6~2.95
M.O.D.0.3m
Distortion-12% ~ -1.5%
Back focal length (optical)5.68~12.82mm
Relative illumination40%~87%
Total track length (TTL)51.56mm

Sensor and imaging

Resolution3.0 Megapixel (Pixel size 3μm)

Environment and compliance

Operating temperature-30~+70°

Mechanical

Sizedia. 31.89 x 51.56mm
Mountdia. 14 (D14)
Weight39g (6G3P)
Shipping weight (estimated)0.15 kg
