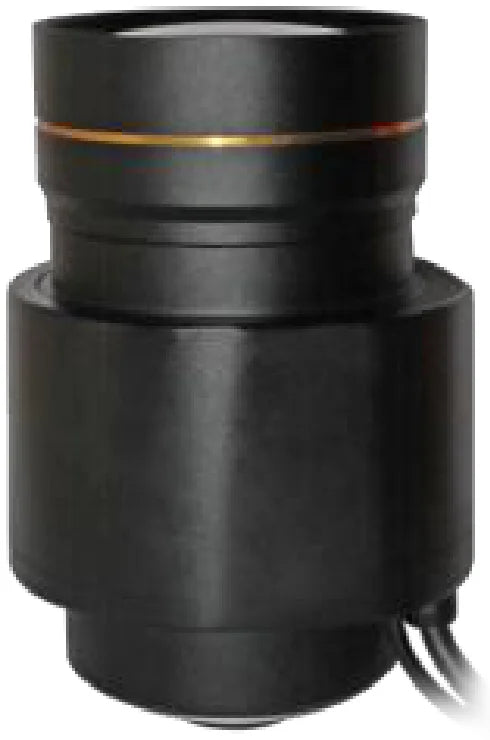

14-42 mm, 1.1", 12 MP, C-mount Motorized Zoom Lens (LS-CTV-0059)
Model LS-CTV-0059
- Focal length14-42 mm
- MountC-mount
- Sensor1.1"
- ApertureF1.5 P-Iris
- Resolution12 Megapixel
$349.00
Ships in 2-3 weeks
1.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
14-42 mm, 1.1", 12 MP, C-mount Motorized Zoom Lens. 14-42 mm motorized zoom lens for 1.1" 12 megapixel cameras with F1.5 P-iris, IR corrected (coating 400-900 nm), for short-distance surveillance and ITS. At a glance: focal length 14-42 mm; format 1.1" (dia. 17.6 mm); resolution 12 Megapixel; aperture F1.5 P-Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0059 |
|---|---|
| IR corrected | IR |
| Format | 1.1" (dia. 17.6 mm) |
| Angle of view (1.1", DxHxV) | W 61 x 34.2 x 35 deg / T 26 x 21.3 x 15 deg ( IMX418) |
| Angle of view (1", DxHxV) | W 56 x 49 x 26 deg / T 24 x 21 x 11.2 deg (IMX305) |
| Angle of view (1/1.2", DxHxV) | W 45 x 39 x 22 deg / T 19 x 17 x 9.4 deg (IMX485) |
| CRA | 5.9° T; 6.1°W (1.1") / 6.3°T; 7° W ( 1/1.2") |
| Notes | -30°~+70°; Coating 400~900 nm |
| IR correction | IR |
| Angle of view (1.1" IMX418, DxHxV) | W 61 x 34.2 x 35 / T 26 x 21.3 x 15 deg |
| Angle of view (1" IMX305, DxHxV) | W 56 x 49 x 26 / T 24 x 21 x 11.2 deg |
| Angle of view (1/1.2" IMX485, DxHxV) | W 45 x 39 x 22 / T 19 x 17 x 9.4 deg |
Optics
| Focal length | 14-42 mm |
|---|---|
| Aperture | F1.5 P-Iris |
| M.O.D. | W 1.5 m / T 2.5 m |
| Distortion | -9%~1.2% (1.1") / -5%~0.3% (1/1.2") |
| Relative illumination | 44% @ dia. 8.8 mm Wide; 43% Tele |
| Back focal length | 12.48 mm |
| Mechanical back focus | 11.61 mm |
| P-iris motor | stepper, rated DC 4.0 V, operating DC 2.7~5 V, max image circle dia. 17.4 mm |
| Zoom / focus motors | 2-phase stepper, rated 5 V DC, 18 deg/step |
| Back focal length (optical) | 12.48mm |
| Mechanical back focal length | 11.61mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

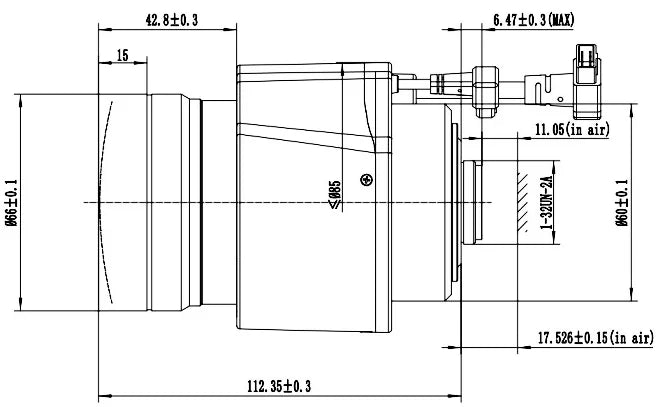

Mechanical
| Size | dia. 66 x 112.35 mm |
|---|---|
| Mount | C |
| Weight | 680 g |
| Shipping weight (estimated) | 1.05 kg |
