CCTV lenses

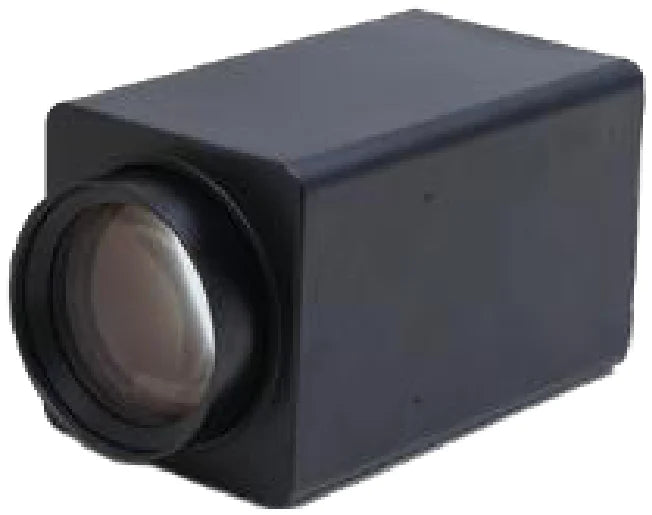

10-330 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0079)

Model LS-CTV-0079

Focal length10-330 mm
MountC-mount
Sensor1/2"
ApertureF1.5 DC Iris
Resolution2.0 Megapixel

$409.00

Ships in 2-3 weeks

4.79 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10-330 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens. 33x motorized zoom lens, 10-330 mm, for 1/2" 2 megapixel (1080P) cameras with F1.5 DC iris and IR correction, for long-distance surveillance. At a glance: focal length 10-330 mm; format 1/2"; resolution 2.0 Megapixel; aperture F1.5 DC Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0079
IR corrected	IR
Format	1/2"
Angle of view (1/2", DxHxV)	W 43.4 x 35 x 26.3 deg / T 1.38 x 1.1 x 0.83 deg
Angle of view (1/3", DxHxV)	W 33 x 26.3 x 20 deg / T 1.04 x 0.83 x 0.62 deg
Angle of view (1/4", DxHxV)	W 25 x 20 x 15 deg / T 0.8 x 0.62 x 0.5 deg
Notes	-20°~+60°
IR correction	IR

Optics

Focal length	10-330 mm
Aperture	F1.5 DC Iris
M.O.D.	2.8 m
Filter thread	M100 x 1
Back focal length	14.67 mm
Distortion	1/2" -3.33%; 1/3" -2%; 1/4" -1.16%
Back focal length (optical)	14.67mm

Sensor and imaging

Resolution	2.0 Megapixel

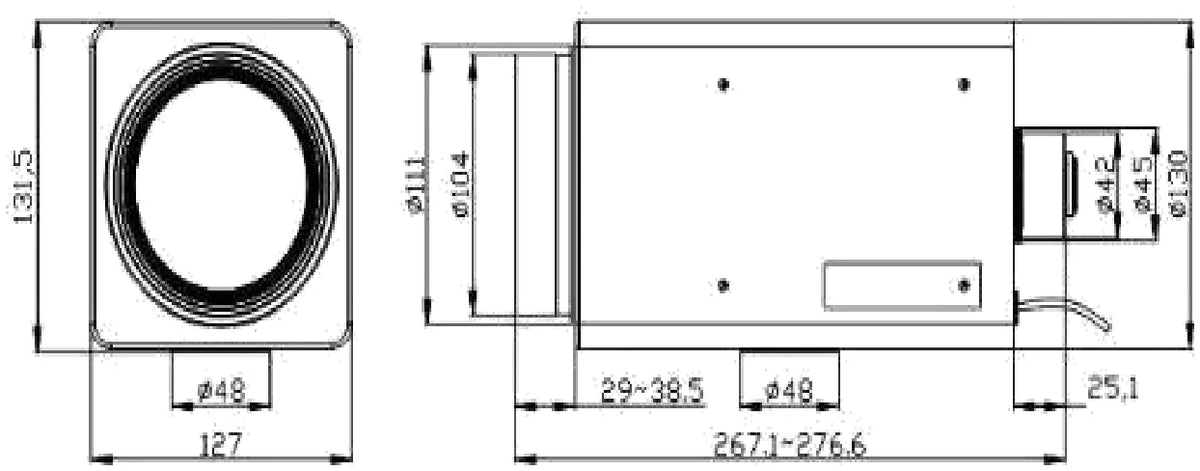

Mechanical

Size	dia. 276 x 131.5 x 127 mm
Mount	C
Weight	3350 g
Shipping weight (estimated)	4.79 kg
