CCTV lenses

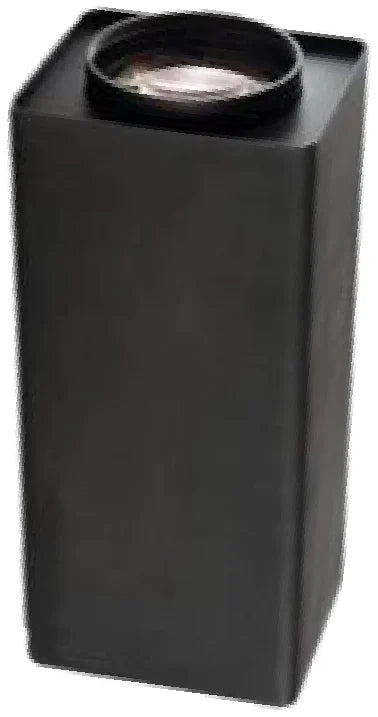

12.5-775 mm, 1/1.7", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0082)

Model LS-CTV-0082

Focal length12.5-775mm
MountC-mount
Sensor1/1.7"
ApertureF3.5 DC Iris
Resolution2 Megapixel

$449.00

Ships in 2-3 weeks

7.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12.5-775 mm, 1/1.7", 2 MP, C-mount Motorized Zoom Lens. 2.0 megapixel 12.5-775 mm long-range motorized zoom lens for 1/1.7" sensors with F3.5 DC iris, optional anti-fog, for border, river/mountain and highway surveillance. At a glance: focal length 12.5-775mm; format 1/1.7"; resolution 2 Megapixel; aperture F3.5 DC Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0082
IR correction	IR
Format	1/1.7"
Angle of view (1/1.7", DxHxV)	W: 41.6 x 36.6 x 21.1 / T: 0.7 x 0.61 x 0.34 deg
Angle of view (1/1.8", DxHxV)	W: 39.2 x 34.5 x 19.8 / T: 0.66 x 0.57 x 0.32 deg
ND filter	M103 P=1
Anti-fog	Optional
Features	Coating 400~950nm; Axial shift-able
Notes	-10°~+50° / -40°~+70°

Optics

Focal length	12.5-775mm
Aperture	F3.5 DC Iris
M.O.D.	5m
Distortion	W: -1.64%@y=4.5mm; W: -1.5%@y=4.0mm
Back focal length (optical)	46mm

Sensor and imaging

Resolution	2 Megapixel

Mechanical

Filter size	M114 x 0.75mm

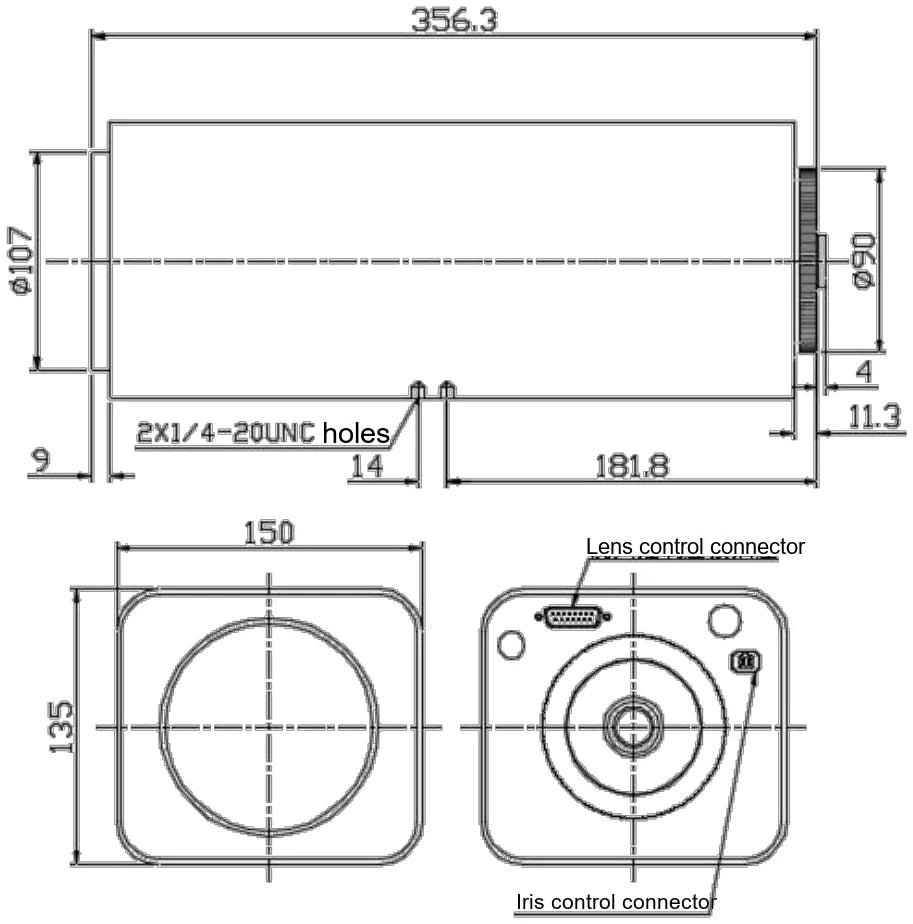

Size	356.3 x 135 x 150mm
Mount	C
Weight	5010g
Shipping weight (estimated)	7.11 kg
