1", C/F-mount Motorized Zoom Lens, WD 85 +/- 2 mm (LS-CTV-0066)
  • 1", C/F-mount Motorized Zoom Lens, WD 85 +/- 2 mm (LS-CTV-0066)

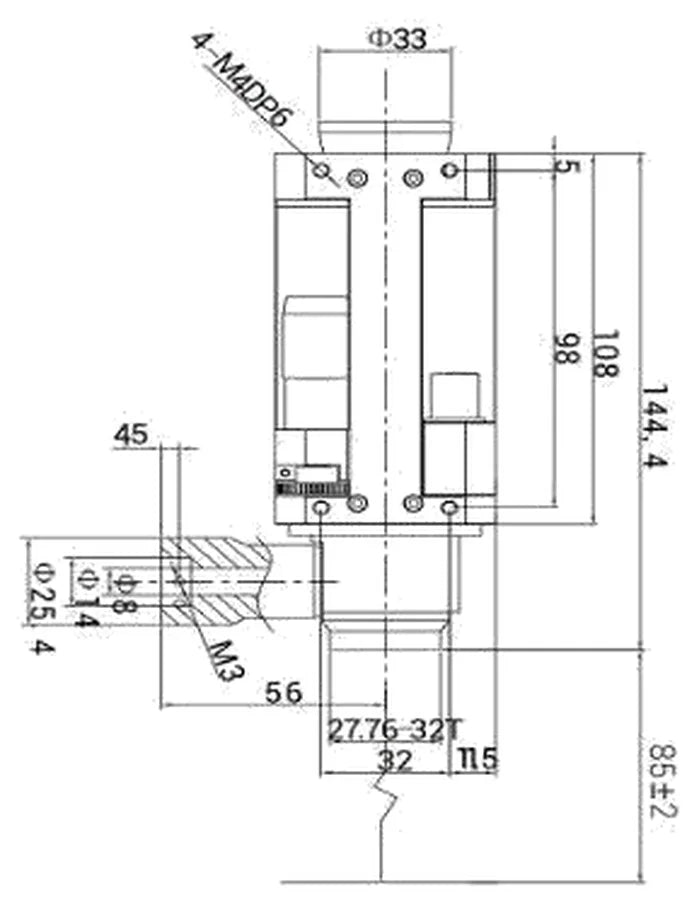

  • LS-CTV-0066 dimensions (mm)

CCTV lenses

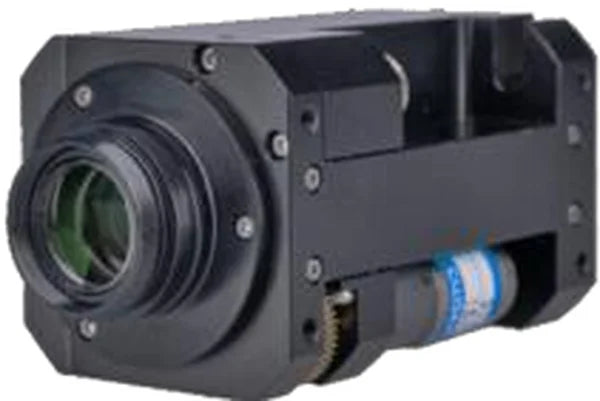

1", C/F-mount Motorized Zoom Lens, WD 85 +/- 2 mm (LS-CTV-0066)

Model LS-CTV-0066

  • MountC-mount
  • Sensor1"
  • Working distance85 +/- 2 mm
  • Resolution16.8/12.0/6.1/4.8/3.9/3.4/3.06/3.05 um
$349.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1", C/F-mount Motorized Zoom Lens, WD 85 +/- 2 mm (LS-CTV-0066)LS-CTV-0066

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1", C/F-mount Motorized Zoom Lens. 12X motorized linear zoom lens, 0.6x to 7.2x, for 1" sensors, C or F mount; coaxial and standard versions available. At a glance: working distance 85 +/- 2 mm; format 1" (dia. 16); mount C / F Mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0066
Zoom range0.6x ~ 7.2x
Format1" (dia. 16)
NotesDetailed FOV Field of view available upon requirement

Optics

Depth of field (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)3.33/1.42/0.36/0.19/0.12/0.08/0.06/0.05 mm
Aperture (NA) (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)0.02/0.028/0.055/0.07/0.086/0.1/0.11/0.11
Distortion (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)0.04%/0.079%/0.07%/0.064%/0.004%/0.02%/0,01%/0.005%
Working distance85 +/- 2 mm

Sensor and imaging

Resolution (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)16.8/12.0/6.1/4.8/3.9/3.4/3.06/3.05 um

Environment and compliance

Operating temperature+10 ~ 35°C
Humidity20~80% RH (No Condensation)

Mechanical

MountC / F Mount
Shipping weight (estimated)0.80 kg
