10-40 mm, 1/1.8", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0071)
  • 10-40 mm, 1/1.8", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0071)

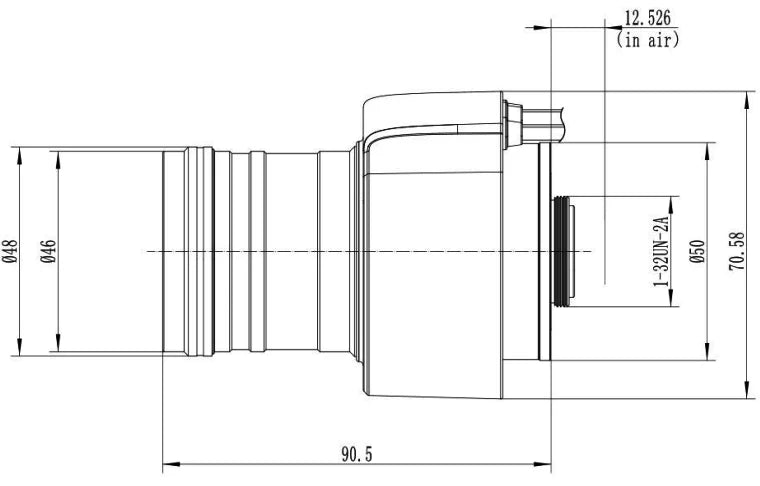

  • LS-CTV-0071 dimensions (mm)

CCTV lenses

10-40 mm, 1/1.8", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0071)

Model LS-CTV-0071

  • Focal length10-40mm
  • MountCS-mount
  • Sensor1/1.8"
  • ApertureF1.6 P-iris ( DC optional )
  • Resolution12 Megapixel
$339.00

Ships in 2-3 weeks

0.73 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

10-40 mm, 1/1.8", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0071)LS-CTV-0071

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

10-40 mm, 1/1.8", 12 MP, CS-mount Motorized Zoom Lens. A 10-40 mm F1.6 motorized zoom lens for 1/1.8" 12-megapixel cameras, P-iris with DC optional, for highway, rail, industry and city surveillance. At a glance: focal length 10-40mm; format 1/1.8"; resolution 12 Megapixel; aperture F1.6 P-iris ( DC optional ); mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0071
IR correctedIR
Format1/1.8"
Angle of view (1/1.7", DxHxV)44 x 36 x 24 deg
CRA<2°@Wide / <3.7°@Tele
Notes-30°~+70°
FeaturesCoating 400~900nm
IR correctionIR
Coating400~900nm

Optics

Focal length10-40mm
ApertureF1.6 P-iris ( DC optional )
M.O.D.1m
Distortion-7% ~ -2.3%
Back focal length10.19~13.15mm
Mechanical back focal length8.33mm
Back focal length (optical)10.19~13.15mm

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 48 x 90.5mm
MountCS
Weight450g
Shipping weight (estimated)0.73 kg
